Product Summary

The EPF6016ATC100-3N is a programmable logic device (PLD). It provides a low-cost alternative to high-volume gate array designs.

Parametrics

Absolute maximum ratings: (1)VCC, Supply voltage: –2.0 to 7.0 V when With respect to ground; (2)VI, DC input voltage: –2.0 to 7.0 V; (3)IOUT, DC output current, per pin: –25 to 25 mA; (4)TSTG, Storage temperature: –65 150 ℃ when No bias; (5)TAMB, Ambient temperature: –65 135 ℃ when Under bias; (6)TJ, Junction temperature: 135 ℃ max when PQFP, TQFP, and BGA packages.

Features

Features: (1)Register-rich, look-up table- (LUT-) based architecture; (2)OptiFLEXR architecture that increases device area efficiency; (3)Typical gates ranging from 5,000 to 24,000 gates; (4)Built-in low-skew clock distribution tree; (5)100% functional testing of all devices; test vectors or scan chains are not required.

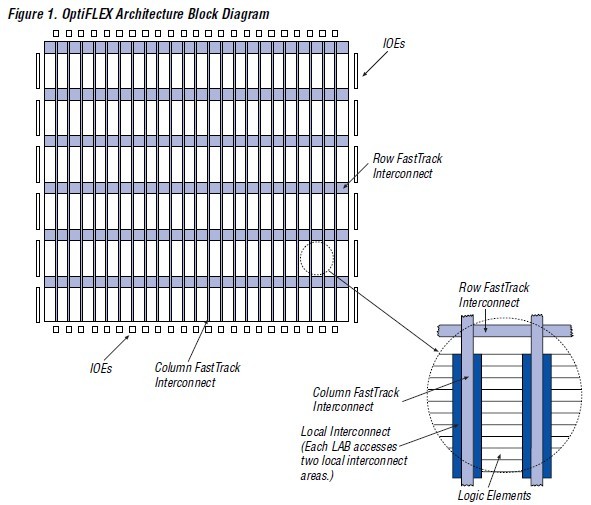

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EPF6016ATC100-3N
EPF6016ATC100-3N


IC FLEX 6000 FPGA 16K 100-TQFP

Data Sheet

0-270: $13.80
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EPF6010ATC100-1
EPF6010ATC100-1


IC FLEX 6000 FPGA 10K 100-TQFP

Data Sheet

0-270: $20.40
EPF6010ATC100-1N
EPF6010ATC100-1N


IC FLEX 6000 FPGA 10K 100-TQFP

Data Sheet

0-270: $20.40
EPF6010ATC100-3
EPF6010ATC100-3


IC FLEX 6000 FPGA 10K 100-TQFP

Data Sheet

0-270: $10.20
EPF6010ATC100-3N
EPF6010ATC100-3N


IC FLEX 6000 FPGA 10K 100-TQFP

Data Sheet

0-1: $10.20
EPF6010ATC144-1
EPF6010ATC144-1


IC FLEX 6000 FPGA 10K 144-TQFP

Data Sheet

0-180: $27.60
EPF6010ATC144-3
EPF6010ATC144-3


IC FLEX 6000 FPGA 10K 144-TQFP

Data Sheet

0-180: $13.80
