The HD64F2166VTE33V is a 16-Bit Single-Chip microcomputer.
Parametrics
Absolute maximum ratings: (1)Power supply voltage* ,VCC: –0.3 to +4.3 V; (2)Input voltage (except port 7, 8, C0 to C5, D6, and D7), Vin: –0.3 to VCC +0.3; (3)Input voltage (port 7), Vin: –0.3 to AVCC +0.3; (4)Input voltage (port 8, C0 to C5, D6, and D7), Vin: –0.3 to +7.0; (5)Reference power supply voltage, AVref: –0.3 to AVCC +0.3; (6)Analog power supply voltage, AVCC: –0.3 to +4.3; (7)Analog input voltage, VAN: –0.3 to AVCC +0.3; (8)Operating temperature, Topr: Regular specifications: –20 to +75 ℃; (9)Wide-range specifications: –40 to +85℃; (10)Operating temperature(when flash memory is programmed or erased), Topr: 0 to +75℃; (11)Storage temperature, Tstg: –55 to +125℃.
Features
Features: (1)Upward-compatibility with H8/300 and H8/300H CPUs: Can execute H8/300 CPU and H8/300H CPU object programs; (2)General-register architecture: Sixteen 16-bit general registers also usable as sixteen 8-bit registers or eight 32-bit registers; (3)Sixty-five basic instructions: 8/16/32-bit arithmetic and logic instructions; Multiply and divide instructions; powerful bit-manipulation instructions; (4)Eight addressing modes; (5)16 Mbytes address space: Program: 16 Mbytes; Data: 16 Mbytes; (6)High-speed operation.

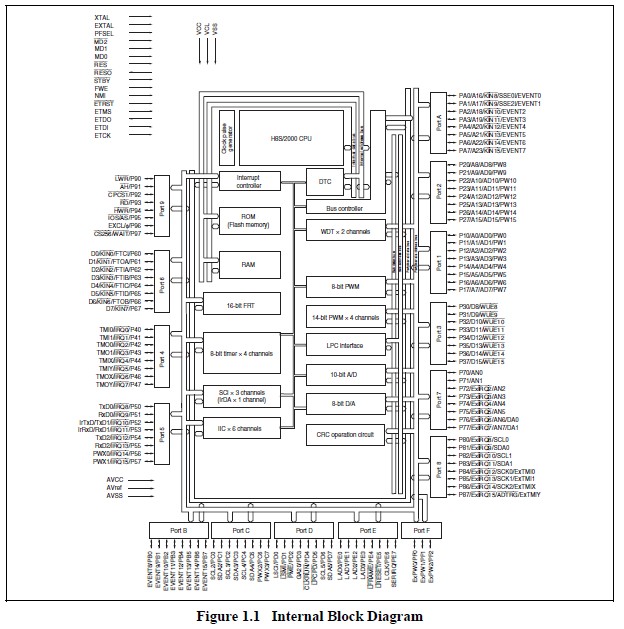

Diagrams
 |
