Product Summary

The MBRS1100T3G Schottky Power Rectifier employs the use of the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. The MBRS1100T3G is ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes, in surface mount applications where compact size and weight are critical to the system.

Parametrics

MBRS1100T3G absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 90V; (2)Working Peak Reverse Voltage, VRWM: 90V; (3)DC Blocking Voltage, VR: 90V; (4)Average Rectified Forward Current, IF(AV): TL = 163℃: 1.0A; TL = 148℃: 2.0A; (5)Non.Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz), IFSM: 50A; (6)Operating Junction Temperature, TJ: -65 to +175 ℃; (7)Voltage Rate of Change, dv/dt: 10 V/ns.

Features

MBRS1100T3G features: (1)Small Compact Surface Mountable Package with J-Bend Leads; (2)Rectangular Package for Automated Handling; (3)Highly Stable Oxide Passivated Junction; (4)High Blocking Voltage 100 Volts; (5)175℃ Operating Junction Temperature; (6)Guardring for Stress Protection; (7)AEC.Q101 Qualified and PPAP Capable; (8)SBRS8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; (9)All Packages are Pb-Free.

Diagrams

MBRS1100T3G circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

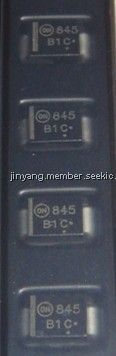

MBRS1100T3G
MBRS1100T3G

ON Semiconductor

Schottky (Diodes & Rectifiers) 1A 100V

Data Sheet

0-1: $0.28
1-25: $0.19
25-100: $0.15
100-500: $0.10
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MBRS10100
MBRS10100

Taiwan Semiconductor

Schottky (Diodes & Rectifiers) 10 Amp 100 Volt Single

Data Sheet

0-800: $0.45
800-1600: $0.37
1600-3200: $0.32
3200-5600: $0.29
MBRS10100CT
MBRS10100CT

Taiwan Semiconductor

Schottky (Diodes & Rectifiers) 10 Amp 100 Volt Dual

Data Sheet

0-800: $0.45
800-1600: $0.37
1600-3200: $0.32
3200-5600: $0.29
MBRS1035
MBRS1035

Taiwan Semiconductor

Schottky (Diodes & Rectifiers) 10 Amp 35 Volt Single

Data Sheet

0-800: $0.37
800-1600: $0.30
1600-3200: $0.26
3200-5600: $0.23
MBRS1035CT
MBRS1035CT

Taiwan Semiconductor

Schottky (Diodes & Rectifiers) 10 Amp 35 Volt Dual

Data Sheet

0-800: $0.43
800-1600: $0.35
1600-3200: $0.31
3200-5600: $0.28
MBRS1045
MBRS1045

Taiwan Semiconductor

Schottky (Diodes & Rectifiers) 10 Amp 45 Volt Single

Data Sheet

0-800: $0.37
800-1600: $0.30
1600-3200: $0.26
3200-5600: $0.23
MBRS1045CT
MBRS1045CT

Taiwan Semiconductor

Schottky (Diodes & Rectifiers) 10 Amp 45 Volt Dual

Data Sheet

0-800: $0.43
800-1600: $0.35
1600-3200: $0.31
3200-5600: $0.28
