Product Summary

The AD9826KRSZ is a complete analog signal processor for imaging applications. It features a 3-channel architecture designed to sample and condition the outputs of trilinear color CCD arrays. Each channel consists of an input clamp, Correlated Double Sampler (CDS), offset DAC, and Programmable Gain Amplifier (PGA), multiplexed to a high-performance 16-bit A/D converter. The AD9826KRSZ can operate at speeds greater than 15 MSPS with reduced performance. The AD9826KRSZ is ideal for: (1)Flatbed Document Scanners; (2)Digital Copier; (3)Multifunction Peripherals; (4)Infrared Imaging Applications; (5)Machine Vision.

Parametrics

AD9826KRSZ absolute maximum ratings: (1)VIN, CAPT, CAPB With Respect To AVSS: –0.3 AVDD + 0.3 V; (2)Digital Inputs With Respect To AVSS: –0.3 AVDD + 0.3 V; (3)AVDD With Respect To AVSS: –0.5 +6.5 V; (4)DRVDD With Respect To DRVSS: –0.5 +6.5 V; (5)AVSS With Respect To DRVSS: –0.3 +0.3 V; (6)Digital Outputs With Respect To DRVSS: –0.3 DRVDD + 0.3 V; (7)Junction Temperature: 150℃; (8)Storage Temperature: –65 +150℃; (9)Lead Temperature (10 sec): 300℃.

Features

AD9826KRSZ features: (1)16-Bit 15 MSPS A/D Converter; (2)3-Channel 16-Bit Operation up to 15 MSPS; (3)1-Channel 16-Bit Operation up to 12.5 MSPS; (4)2-Channel Mode for Mono Sensors with Odd/Even Outputs; (5)Correlated Double Sampling; (6)1~6x Programmable Gain; (7)±300 mV Programmable Offset; (8)Input Clamp Circuitry; (9)Internal Voltage Reference; (10)Multiplexed Byte-Wide Output; (11)Optional Single Byte Output Mode; (12)3-Wire Serial Digital Interface; (13)3 V/5 V Digital I/O Compatibility; (14)28-Lead SSOP Package; (15)Low Power CMOS: 400 mW (Typ); (16)Power-Down Mode Available.

Diagrams

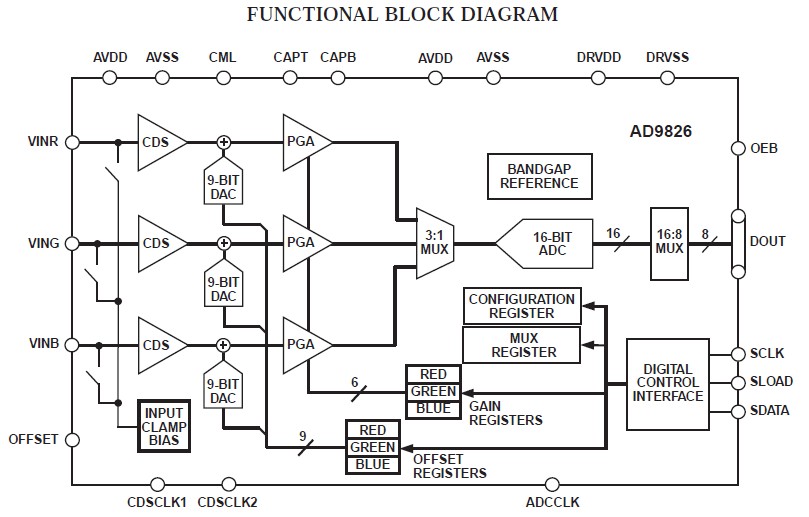

AD9826KRSZ circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD9826KRSZ
AD9826KRSZ

IC IMAGE SGNL PROC 16BIT 28-SSOP
Data Sheet
0-1: $6.70
1-10: $6.09
10-100: $5.18
100-250: $4.72
250-500: $4.42
500-1000: $4.06
AD9826KRSZRL
AD9826KRSZRL

IC IMAGE SGNL PROC 16BIT 28-SSOP
Data Sheet
0-1500: $4.06
