Product Summary

The MAX313LESE+ is an analog switch. The device features low on-resistance (10Ω max) and 1.5Ω onresistance matching between channels. The MAX313LESE+ is +3V logic compatible when powered from ±15V or +12V supplies. The switch conducts equally well in either direction, and offer low leakage over temperature. The MAX313LESE+ has two NC switches and two NO switches. The device operates from a single +4.5V to +36V supply or from dual ±4.5V to ±20V, and is available in 16-pin TSSOP, SO, and DIP packages. The applications of the MAX313LESE+ include Test Equipment, Communication Systems, PBX, PABX Systems, Audio Signal Routing, Avionics, Sample-and-Hold Circuits, Data-Acquisition Systems and xDSL Modems.

Parametrics

MAX313LESE+ absolute maximum ratings: (1)V+: -0.3V to +44V; (2)V-: +0.3V to -44V; (3)V+ to V-: -0.3V to +44V; (4)VIN_ to V-: -0.3V to +44V; (5)All Other Pins: (V- - 0.3V) to (V+ + 0.3V); (6)Continuous Current (COM_, NO_, NC_): ±100mA; (7)Peak Current (COM_, NO_, NC_) (pulsed at 1ms, 10% duty cycle max): ±300mA; (8)Continuous Power Dissipation (TA = +70℃): 457mW; (9)Operating Temperature Ranges: -40 to +85℃; (10)Storage Temperature Range: -65 to +150℃; (11)Junction Temperature: +150℃; (12)Lead Temperature (soldering, 10s):+300℃.

Features

MAX313LESE+ features: (1)+3V Logic-Compatible Digital Inputs: VIH = 2.0V; VIL = 0.8V; (2)Pin Compatible with MAX312/MAX313/MAX314 and DG411/DG412/DG413; (3)Low On-Resistance (10Ω max); (4)Guaranteed RON Match Between Channels (1.5Ω max); (5)Guaranteed RON Flatness over Specified Signal Range (2Ω max); (6)Crosstalk > 96dB at 20kHz; (7)Single-Supply Operation: +4.5V to +36V; Dual-Supply Operation: ±4.5V to ±20V; (8)Rail-to-Rail Signal Handling.

Diagrams

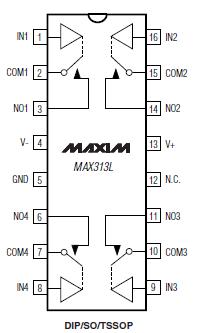

MAX313LESE+ circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX313LESE+
MAX313LESE+

Maxim Integrated Products

Analog Switch ICs 10Ohm Quad SPST CMOS

Data Sheet

0-1: $5.15
1-25: $3.43
25-50: $2.48
50-250: $2.44
MAX313LESE+T
MAX313LESE+T

Maxim Integrated Products

Analog Switch ICs 10Ohm Quad SPST CMOS

Data Sheet

0-2085: $2.11
2085-2500: $2.11
