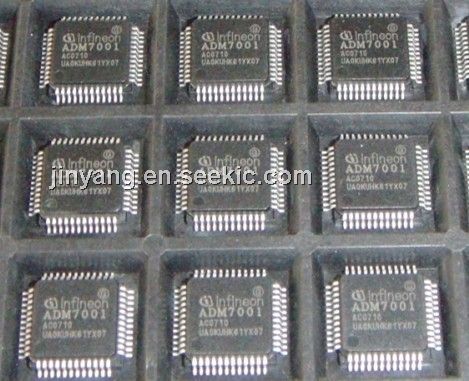

ADM7001X-AC-T-1

Product Summary

The ADM7001X-AC-T-1 is a single chip one port 10/100M PHY, which is designed for todays low cost and low power dual speed application. The ADM7001X-AC-T-1 supports auto sensing 10/100 Mbps ports with on-chip clock recovery and base line wander correction including integrated MLT-3 functionality for 100 Mbps operation, and also supports Manchester Code Converter with on chip clock recovery circuitry for 10 Mbps functionality. Meanwhile, the ADM7001X-AC-T-1 provides Medium Independent Interface (MII), Reduced Medium Independent Interface (RMII) and General Purpose Serial Interface (GPSI), three different interfaces in different applications. For todays IA (Information Application), ADM7001X-AC-T-1 supports "Auto Cross Over Detection" function to eliminate the technical barrier between networking and end user. With the aid of this auto cross over detection function, Plug-n-Play feature can be easily applied to IA relative products.

Parametrics

ADM7001X-AC-T-1 absolute maximum rating: (1)3.3 V Power Supply VCC33: 3.0 to 3.6 V; (2)2.5 V Power Supply VCC25: 2.25 to 2.75 V; (3)Input Voltage VIN: -0.3 to VCC33 + 0.3V; (4)Output Voltage VOUT: -0.25 to VCC25 + 0.25V; (5)Storage Temperature TSTG: -55 to 155℃; (6)Power Consumption PC: 0.5W; (7)ESD Rating VESD: 2000V.

Features

ADM7001X-AC-T-1 features: (1)IEEE 802.3 compatible 10Base-T and 100Base-T physical layer interface and ANSI X3.263 TP-PMD compatible transceiver; (2)Single chip, integrated physical layer and transceivers for 10Base-T and 100BASE-TX function; (3)Medium Independent Interface (MII), Reduced MII (RMII) and General Purpose Serial Interface (GPSI) for high port count switch; (4)Built-in 10 Mbit transmit filter; (5)10 Mbit PLL, exceeding tolerances for both preamble and data jitter; (6)100 Mbit PLL, combined with the digital adaptive equalizer and performance up to 120 meters for UTP 5; (7)125 MHz Clock Generator and Timing Recovery; (8)Integrated Base Line Wander Correction; (9)Carrier Integrity Monitor function supported.

Diagrams
