Product Summary
The AT90S8515-8JI is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the AT90S8515-8JI achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.
Parametrics
AT90S8515-8JI absolute maximum ratings: (1)Fully Static Operation: 0 - 8 MHz 4.0 - 6.0V, 0 - 4 MHz 2.7 - 4.0V.
Features
AT90S8515-8JI features: (1)AVR - High Performance and Low Power RISC Architecture; (2)118 Powerful Instructions - Most Single Clock Cycle Execution; (3)8K bytes of In-System Reprogrammable Flash; (4)Up to 8 MIPS Throughput at 8 MHz; (5)One 8-Bit Timer/Counter with Separate Prescaler; (6)One 16-Bit Timer/Counter with Separate Prescaler and Compare and Capture Modes; (7)Dual PWM; (8)External and Internal Interrupt Sources; (9)Programmable Watchdog Timer with On-Chip Oscillator; (10)On-Chip Analog Comparator; (11)Low Power Idle and Power Down Modes; (12)Programming Lock for Software Securit.

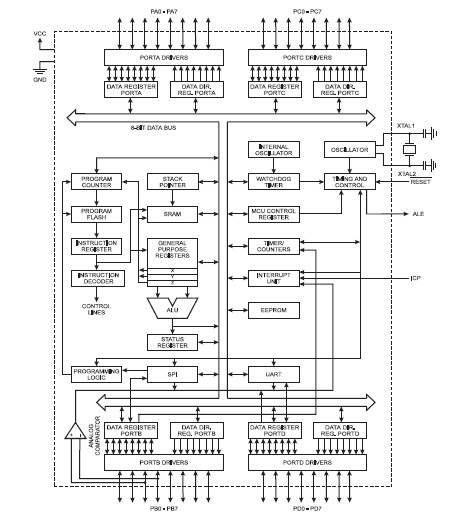

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
AT90S8515-8JI |
Atmel |
8-bit Microcontrollers (MCU) 8K Flash 5V |
Data Sheet |
Negotiable |
|
|||||
