Product Summary

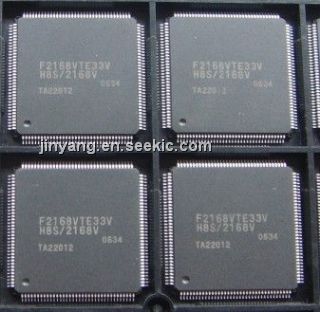

The HD64F2168VTE33V is a 16-Bit Single-Chip Microcomputer. The HD64F2168VTE33V CPU has an internal 32-bit configuration, sixteen 16-bit general registers, and a simple and optimized instruction set for high-speed operation. The HD64F2168VTE33V CPU can handle a 16-Mbyte linear address space. The instruction set of the HD64F2168VTE33V CPU maintains upward compatibility at the object level with the H8/300 and H8/300H CPUs.

Parametrics

HD64F2168VTE33V absolute maximum ratings: (1)Power supply voltage, VCC: –0.3 to +4.3V; (2)Input voltage, Vin: –0.3 to VCC+0.3V; (3)Input voltage (port 7), Vin: –0.3 to AVCC+0.3V; (4)Input voltage, Vin: –0.3 to +7.0V; (5)Reference power supply voltage, AVref: –0.3 to AVCC +0.3V; (6)Analog power supply voltage, AVCC: –0.3 to +4.3V; (7)Analog input voltage, VAN: –0.3 to AVCC+0.3V; (8)Operating temperature Topr Regular specifications: –20 to +75℃; (9)Wide-range specifications: –40 to +85℃; (10)Operating temperature, Topr: 0 to +75℃; (11)Storage temperature, Tstg: –55 to +125℃.

Features

HD64F2168VTE33V features: (1)Package: 144TQFP; (2)Family Name: H8S; (3)Maximum Speed: 33 MHz; (4)RAM Size 40 KB; (5)Program Memory Size 256 KB; (6)Operating Supply Voltage 3.3V; (7)Data Bus Width: 16/32 Bit; (8)Program Memory Type: Flash; (9)Number of Programmable I/Os: 106; (10)Interface Type: I2C/IrDA/SCI; (11)On-Chip ADC: 8-chx10-bit; (12)On-Chip DAC: 2-chx8-bit; (13)Operating Temperature: -20 to 75℃; (14)Number of Timers: 5.

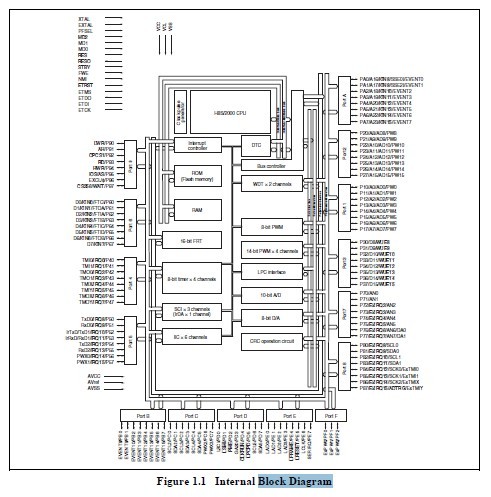

Diagrams

HD64F2168VTE33V pin connection
