Product Summary

The K6F1616U6C-XF55 is a 1M x 16 bit Super Low Power and Low Voltage Full CMOS Static RAM. The K6F1616U6C-XF55 is fabricated by advanced full CMOS process technology. The device supports industrial operating temperature ranges. The K6F1616U6C-XF55 also supports low data retention voltage for battery back-up operation with low data retention current.

Parametrics

K6F1616U6C-XF55 absolute maximum ratings: (1)Voltage on any pin relative to Vss, VIN,VOUT: -0.2 to VCC+0.3V(Max. 3.6V); (2)Voltage on Vcc supply relative to Vss, VCC: -0.2 to 3.6 V; (3)Power Dissipation, PD: 1.0 W; (4)Storage temperature, TSTG: -65 to 150℃; (5)Operating Temperature, TA: -40 to 85℃.

Features

K6F1616U6C-XF55 features: (1)Process Technology: Full CMOS; (2)Organization: 1M x16; (3)Power Supply Voltage: 2.7~3.3V; (4)Low Data Retention Voltage: 1.5V(Min); (5)Three State Outputs; (6)Package Type: 48-FBGA - 6.00x7.00.

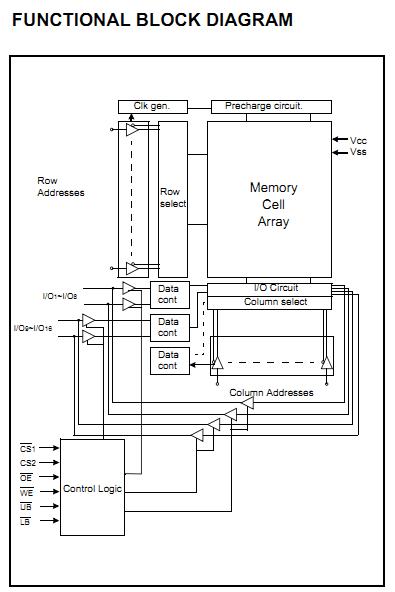

Diagrams

K6F1616U6C-XF55 pin connection
