Product Summary
The SN74HC175DR is a kind of positive-edge-triggered D-type flip-flop, which has a direct clear (CLR) input. The SN74HC175DR features complementary outputs from each flip-flop.
Parametrics
SN74HC175DR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Storage temperature range, Tstg: -65℃ to 150℃.
Features
SN74HC175DR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Contain Four Flip-Flops With Double-Rail Outputs; (5)Typical tpd = 13 ns; (6)±4-mA Output Drive at 5 V; (7)Low Input Current of 1 μA Max; (8)Applications Include: Buffer/Storage Registers; Shift Registers; Pattern Generators.

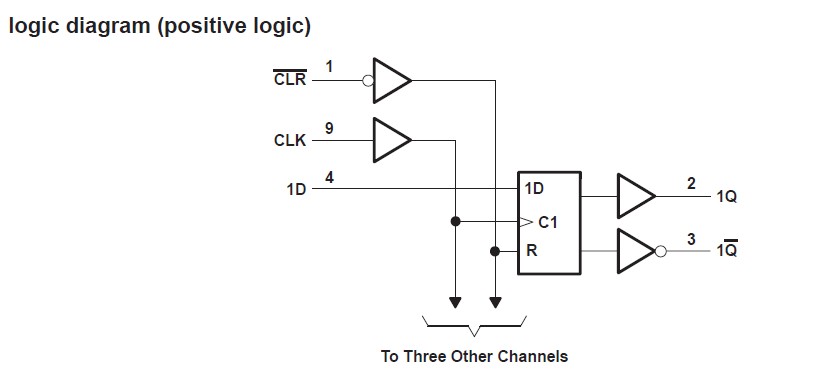

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC175DR |
Texas Instruments |
Flip Flops Quad |
Data Sheet |
|
|
||||||||||||
|
SN74HC175DRE4 |
Texas Instruments |
Flip Flops Quadruple D-Type Flip-Flop W/Clear |
Data Sheet |
|
|
||||||||||||
|
SN74HC175DRG4 |
Texas Instruments |
Flip Flops QUAD DTYPE FlipFlops |
Data Sheet |
|
|
||||||||||||
