MAX1480CEPI+

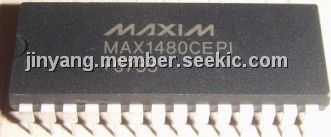

MAX1480CEPI+, electrically isolated, data-communications interface solution, DIP-28, 696mW, 50mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~13.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~13.50

PartNumber:: MAX1480CEPI+

Brand:: Maxim Integrated Products - Maxim | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Wendy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-17

From Other Seller

Part Number:MAX1480CEPI+
US $10.00 - 13.50
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MAX1480CEPI+ is a complete, electrically isolated, RS-485/RS-422 data-communications interface solution in a hybrid microcircuit. Transceivers, optocouplers, and a transformer provide a complete interface in a standard DIP package. A single +5V supply on the logic side powers both sides of the interface. The applications of the MAX1480CEPI+ include Isolated RS-485/RS-422 Data Interface, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks, Automatic Test Equipment and HVAC/Building Control Networks.

Parametrics

MAX1480CEPI+ absolute maximum ratings: (1)With Respect to GND_Supply Voltage (VCC_): -0.3V to +6V; (2)Control Input Voltage (SD, FS): -0.3V to (VCC_ + 0.3V); (3)Receiver Output Voltage (RO, RO): -0.3V to (VCC_ + 0.3V); (4)Output Switch Voltage (D1, D2): +12V; (5)Control Input Voltage (ISO DE_ ): -0.3V to (ISO VCC_ + 0.3V); (6)Driver Input Voltage (ISO DI_ ): -0.3V to (ISO VCC_ + 0.3V); (7)Receiver Output Voltage (ISO RO_): -0.3V to (ISO VCC_ + 0.3V); (8)Driver Output Voltage (A, B, Y, Z ): -8V to +12.5V; (9)Receiver Input Voltage (A, B): -8V to +12.5V; (10)LED Forward Current (DI, DE, ISO RO LED): 50mA; (11)Continuous Power Dissipation: 696mW; (12)Operating Temperature Ranges: 0 to +70℃; (13)Storage Temperature Range: -65 to +160℃; (14)Lead Temperature (soldering, 10s): +300℃.

Features

MAX1480CEPI+ features: (1)For Integrated ESD Protection MAX1480E/MAX1490E: ±15kV ESD-Protected, Isolated RS-485/RS-422 Data Interfaces; (2)For Space-Constrained Applications MAX3157: High CMRR, RS-485 Transceiver with ±50V Isolation.
