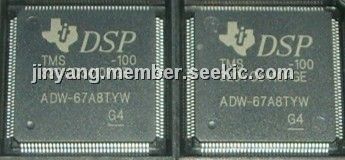

Product Summary

The TMS320VC5410PGE-100 is a fixed-point, digital signal processor (DSP) (hereafter referred to as the 5410A unless otherwise specified). The TMS320VC5410PGE-100 is based on an advanced modified Harvard architecture that has one program memory bus and three data memory buses. This processor TMS320VC5410PGE-100 provides an arithmetic logic unit (ALU) with a high degree of parallelism, application-specific hardware logic, on-chip memory, and additional on-chip peripherals. The basis of the operational flexibility and speed of this DSP is a highly specialized instruction set.

Parametrics

TMS320VC5410PGE-100 absolute maximum ratings: (1)DVDD, Supply voltage I/O range: –0.3V to 4.0V; (2)CVDD, Supply voltage core range: –0.3V to 2.0V; (3)VI, Input voltage range: –0.3V to 4.5V; (4)VO, Output voltage range: –0.3V to 4.5V; (5)TC, Operating case temperature range: –40 to 100℃; (6)Tstg, Storage temperature range: –55 to 150℃.

Features

TMS320VC5410PGE-100 features: (1)Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Memory Bus; (2)40-Bit Arithmetic Logic Unit (ALU) Including a 40-Bit Barrel Shifter and Two Independent 40-Bit Accumulators; (3)17- × 17-Bit Parallel Multiplier Coupled to a 40-Bit Dedicated Adder for Non-Pipelined Single-Cycle Multiply/Accumulate (MAC) Operation; (4)Compare, Select, and Store Unit (CSSU) for the Add/Compare Selection of the Viterbi Operator; (5)Exponent Encoder to Compute an Exponent Value of a 40-Bit Accumulator Value in a Single Cycle; (6)Two Address Generators With Eight Auxiliary Registers and Two Auxiliary Register Arithmetic Units (ARAUs); (7)Data Bus With a Bus Holder Feature; (8)Extended Addressing Mode for 8M × 16-Bit Maximum Addressable External Program.

Diagrams

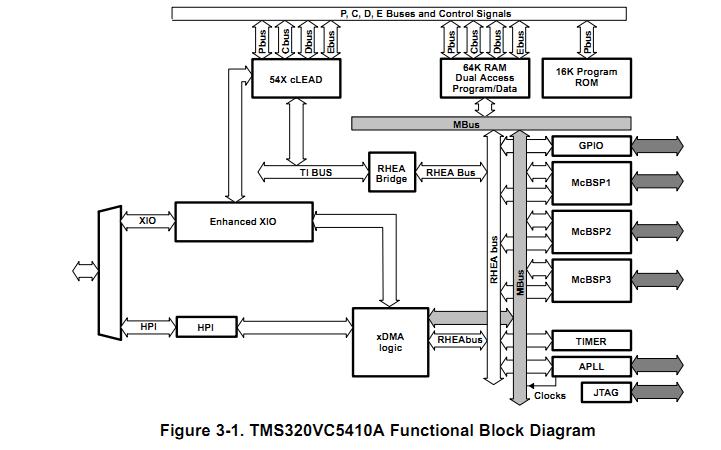

TMS320VC5410PGE-100  circuit diagram
