Product Summary
The AD7417BRZ is a 10-bit, 4-channel and single channel ADC with an on-chip temperature sensor that can operate from a single 2.7 V to 5.5 V power supply. The AD7416AR contains a 15 μs successive approximation converter, a 5-channel multiplexer, a temperature sensor, a clock oscillator, a track-and-hold, and a reference (2.5 V). The AD7417BRZ is a temperature-monitoring only device in an 8-lead package. The AD7417BRZ sensor on the parts can be accessed via multiplexer Channel 0. When Channel 0 is selected and a conversion is initiated, the resulting ADC code at the end of the conversion gives a measurement of the ambient temperature (±1℃ @ 25℃). On-chip registers can be programmed with high and low temperature limits, and an open-drain overtemperature indicator (OTI) output is provided, which becomes active when a programmed limit is exceeded.
Parametrics
AD7417BRZ absolute maximum ratings: (1)VDD to AGND: -0.3 V to +7 V; (2)VDD to DGND: -0.3 V to +7 V; (3)Analog Input Voltage to AGND; (4)AIN1 to AIN4: -0.3 V to VDD + 0.3 V; (5)Reference Input Voltage to AGND2: -0.3 V to VDD + 0.3 V; (6)Digital Input Voltage to DGND: -0.3 V to VDD + 0.3 V; (7)Digital Output Voltage to DGND : -0.3 V to VDD + 0.3 V; (8)Storage Temperature Range: -65℃ to +150℃; (9)Junction Temperature : 150℃; (10)TSSOP, Power Dissipation: 450 mW; (11)16-Lead SOIC Package, Power Dissipation: 450 mW; (12)θJA Thermal Impedance: 100℃/W.
Features
AD7417BRZ features: (1)10-Bit ADC with 15 μs and 30 μs Conversion Times; (2)Single and Four Single-Ended Analog Input Channels; (3)On-Chip Temperature Sensor: -40℃ to +125℃; (4)On-Chip Track-and-Hold; (5)Overtemperature Indicator; (6)Automatic Power-Down at the End of a Conversion; (7)Wide Operating Supply Range: 2.7 V to 5.5 V; (8)I2C Compatible Serial Interface; (9)Selectable Serial Bus Address Allows Connection of up to Eight AD7416/AD7417s to a Single Bus; (10)AD7416 Is a Superior Replacement for LM75.

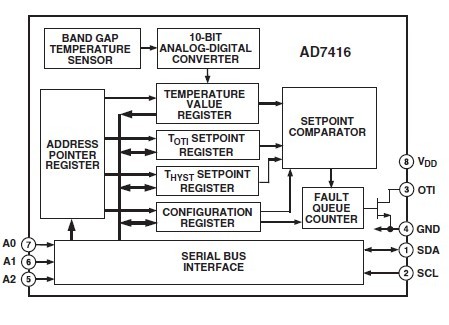

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7417BRZ |
|
IC ADC 4CH W/TEMP SENSOR 16-SOIC |
Data Sheet |
|
|
||||||
|
AD7417BRZ-REEL |
|
IC ADC 4CH W/TEMP SENSOR 16-SOIC |
Data Sheet |
|
|
||||||
|
AD7417BRZ-REEL7 |
|
IC ADC 4CH W/TEMP SENSOR 16-SOIC |
Data Sheet |
|
|
||||||
