Product Summary

The TLE8104E is a quad Low-Side switch in Smart Power Technology (SPT) with four open drain DMOS output stages. The TLE8104E is protected by embedded protection functions and designed for automotive applications. The output stages can be controlled directly by parallel inputs for PWM applications (e.g. gasoline port injection) or by SPI. The parallel inputs can be programmed to be active high or active low. Diagnosis can be read from an 8-bit SPI or by the external fault pin.

Parametrics

Absolute maximum ratings: (1)Supply Voltage, VS: -0.3 to 7 V; (2)Continuous Drain Source Voltage(OUT1 to OUT4), VDS: -0.3 to 45 V; (3)Input Voltage, All Inputs and Data outputs, Sense Lines, VIN: -0.3 to 7 V; (4)Output Current per Channel, ID: 0 to 3 A; (5)Maximum Voltage for short circuit Protection (single event), VSC, single: 30V max; (6)Electrostatic Discharge Voltage (human body model) according to EIA/JESD22-A114-E, VESD: -2000 to 2000 V.

Features

Features: (1)Overload Protection; (2)DMOS Overtemperature protection; (3)Overvoltage protection; (4)Open load detection; (5)Low quiescent current mode; (6)Electrostatic discharge (ESD) protection; (7)IC Overtemperature warning; (8)8-Bit SPI (for diagnosis and control); (9)Short to GND detection; (10)Green Product (RoHS compliant); (11)AEC Qualified.

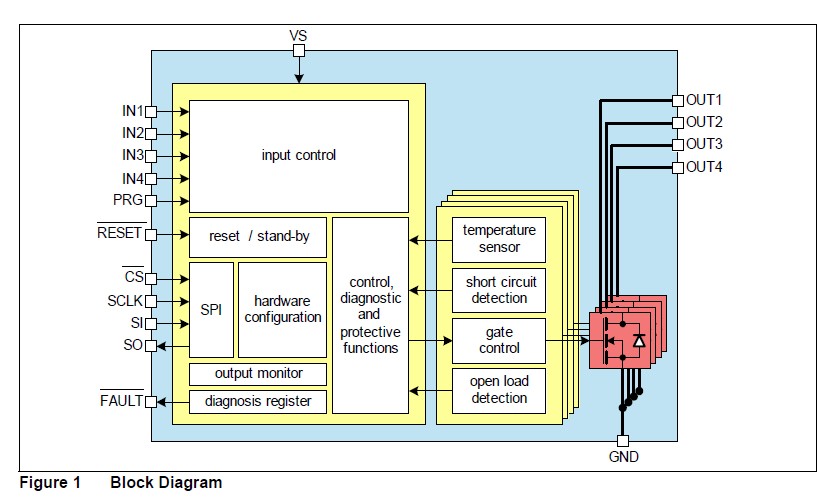

Diagrams
