AD9244BSTZ-40

AD9244BSTZ-40, 14-Bit, QFP, 40/65 MSPS Monolithic A/D Converter, 5 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $22.00~24.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $22.00~24.00

PartNumber:: AD9244BSTZ-40

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Wendy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-05

From Other Seller

Part Number:AD9244BSTZ-40
US $22.00 - 24.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

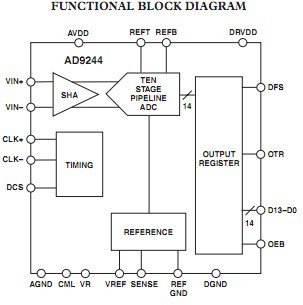

The AD9244BSTZ-40 is a monolithic, single 5 V supply, 14-bit, 40 MSPS/65 MSPS analog-to-digital converter with an on-chip, high performance sample-and-hold amplifier and voltage reference. The AD9244BSTZ-40 uses a multistage differential pipelined architecture with output error correction logic to provide 14-bit accuracy at 40 MSPS/65 MSPS data rates and guarantees no missing codes over the full operating temperature range.

Parametrics

AD9244BSTZ-40 absolute maximum ratings: (1)AVDD AGND: –0.3 +6.5 V; (2)DRVDD DGND: –0.3 +6.5 V; (3)AGND DGND: –0.3 +0.3 V; (4)AVDD DRVDD: –6.5 +6.5 V; (5)REFGND AGND: –0.3 +0.3 V; (6)VREF AGND: –0.3 AVDD + 0.3 V; (7)SENSE AGND: –0.3 AVDD + 0.3 V; (8)REFB, REFT AGND: –0.3 AVDD + 0.3 V; (9)CML AGND: –0.3 AVDD + 0.3 V; (10)VR AGND: –0.3 AVDD + 0.3 V; (11)OTR DGND: –0.3 DRVDD + 0.3 V; (12)D0–D13 DGND: –0.3 DRVDD + 0.3 V; (13)OEB DGND: –0.3 DRVDD + 0.3 V.

Features

AD9244BSTZ-40 features: (1)14-Bit, 40/65 MSPS ADC; (2)On-Chip Reference and Sample-and-Hold; (3)750 MHz Analog Input Bandwidth; (4)SNR > 73 dBc to Nyquist @ 65 MSPS; (5)SFDR > 86 dBc to Nyquist @ 65 MSPS; (6)Single 5 V Analog Supply, 3.3 V/5 V Driver Supply; (7)Out-of-Range Indicator; (8)Straight Binary or Twos Complement Output Data; (9)Clock Duty Cycle Stabilizer; (10)Output Enable Function; (11)48-Lead LQFP Package.
