Product Summary

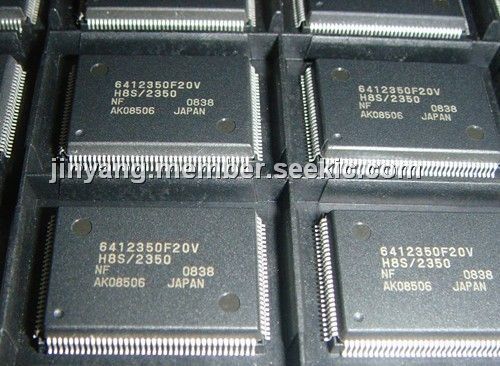

The HD6412350F20 is a microcomputer. It has on-chip mask ROM. Its package is QFP.
Parametrics
Absolute maximum ratings: (1)Power supply voltage, VCC: –0.3 to +7.0 V; (2)Input voltage (except port 4), Vin: –0.3 to VCC +0.3 V; (3)Input voltage (port 4), Vin: –0.3 to AVCC +0.3 V; (4)Reference voltage, Vref: –0.3 to AVCC +0.3 V; (5)Analog power supply voltage, AVCC: –0.3 to +7.0 V; (6)Analog input voltage, VAN: –0.3 to AVCC +0.3 V; (7)Operating temperature, Topr: Regular specifications: –20 to +75 ℃; Wide-range specifications: –40 to +85 ℃; (8)Storage temperature, Tstg: –55 to +125 ℃.
Features
Features: (1)Upward-compatible with H8/300 and H8/300H CPUs: Can execute H8/300 and H8/300H object programs; (2)General-register architecture: Sixteen 16-bit general registers (also usable as sixteen 8-bit registers or eight 32-bit; (3)registers); (4)Sixty-five basic instructions: 8/16/32-bit arithmetic and logic instructions; Multiply and divide instructions; Powerful bit-manipulation instructions; (5)16-Mbyte address space: Program: 16 Mbytes; Data: 16 Mbytes (4 Gbytes architecturally).
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
HD6412350F20 |
IC H8S MPU ROMLESS 5V 128QFP |
Data Sheet |
Negotiable |
|
||||||
HD6412350F20V |
IC H8S MPU ROMLESS 5V 128QFP |
Data Sheet |
Negotiable |
|
