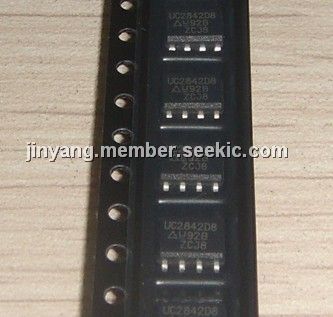

Product Summary

The UC2842D8TRG is a current mode pwm controller. It provides the necessary features to implement off-line or dc-to-dc fixed frequency current mode control schemes with a minimal external parts count.

Parametrics

Absolute maximum ratings: (1) Supply voltage, Low impedance source: 30 V; ICC < 30 mA: Self Limiting; (2)Output current: ±1 A; (3)Output energy (capacitive load): 5 mJ; (4)Analog inputs (Pins 2, 3): –0.3 V to 6.3 V; (5)Error amp output sink current: 10 mA; (6)Storage temperature range: –65℃ to 150℃; (7)Junction temperature range: –55℃ to 150℃; (8)Lead temperature (soldering, 10 seconds): 300℃.

Features

Features: (1)optimized for off-line and DC-to-DC converters; (2)low start-up current; (3)automatic feed forward compensation; (4)pulsed-by-pulse current limiting; (5)enhanced load response characteristics; (6)under-voltage lockout with hysteresis; (7)double pulse suppression; (8)high current totem pole output; (9)internally trimmed bandgap reference; (10)500kHz operation; (11)low R0 error Amp.

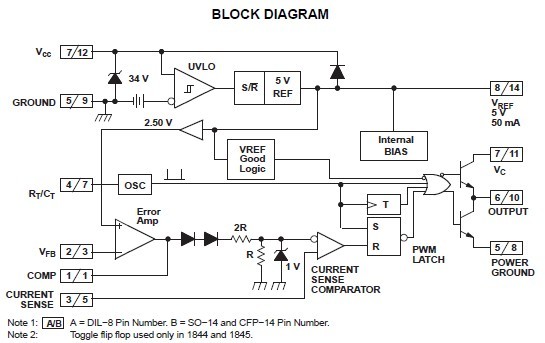

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UC2842D8TRG4
UC2842D8TRG4

Texas Instruments

Current Mode PWM Controllers Current-Mode PWM Controller

Data Sheet

0-1730: $0.40
1730-2000: $0.37
2000-2500: $0.37
2500-5000: $0.36
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
UC28023DW
UC28023DW

Texas Instruments

Current Mode PWM Controllers Economy High Speed

Data Sheet

0-1: $2.77
1-25: $1.96
25-100: $1.78
100-250: $1.55
UC28023DWG4
UC28023DWG4

Texas Instruments

Current Mode PWM Controllers Economy High Speed

Data Sheet

0-1: $2.47
1-25: $2.03
25-100: $1.78
100-250: $1.55
UC28023DWR
UC28023DWR

Texas Instruments

Current Mode PWM Controllers Economy High Speed

Data Sheet

0-1490: $1.09
1490-2000: $1.06
2000-5000: $1.01
UC28023DWRG4
UC28023DWRG4

Texas Instruments

Current Mode PWM Controllers Economy High Speed

Data Sheet

0-1490: $1.09
1490-2000: $1.06
2000-5000: $1.01
UC28023N
UC28023N

Texas Instruments

Current Mode PWM Controllers Economy High Speed

Data Sheet

0-1: $2.47
1-25: $2.03
25-100: $1.78
100-250: $1.55
UC28023NG4
UC28023NG4

Texas Instruments

Current Mode PWM Controllers Economy High Speed

Data Sheet

0-1: $2.47
1-25: $2.03
25-100: $1.78
100-250: $1.55
