Product Summary

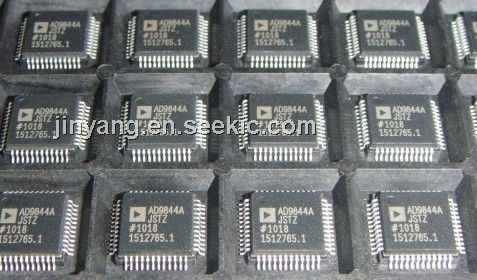

The AD9844AJSTZ is a complete analog signal processor for CCD applications. The AD9844AJSTZ features a 20 MHz single-channel architecture designed to sample and condition the outputs of interlaced and progressive scan area CCD arrays. The internal registers are programmed through a 3-wire serial digital interface. Programmable features include gain adjustment, black level adjustment, input configuration, and power-down modes. The AD9844AJSTZ operates from a single 3 V power supply, typically dissipates 78 mW, and is packaged in a 48-lead LQFP. Applications are (1)digital still cameras; (2)digital video camcorders; (3)PC cameras.
Parametrics
AD9844AJSTZ absolute maximum ratings: (1)AVDD1, AVDD2 AVSS: –0.3 to +3.9 V; (2)DVDD1, DVDD2 DVSS: –0.3 to +3.9 V; (3)DRVDD DRVSS: –0.3 to +3.9 V; (4)Digital Outputs DRVSS: –0.3 to DRVDD + 0.3 V; (5)SHP, SHD, DATACLK DVSS: –0.3 to DVDD + 0.3 V; (6)CLPOB, CLPDM, PBLK DVSS: –0.3 to DVDD + 0.3 V; (7)SCK, SL, SDATA DVSS: –0.3 to DVDD + 0.3 V; (8)VRT, VRB, CMLEVEL AVSS: –0.3 to AVDD + 0.3 V; (9)BYP1-4, CCDIN AVSS: –0.3 to AVDD + 0.3 V; (10)Junction Temperature: 150 °C; (11)Lead Temperature: 300 °C.
Features
AD9844AJSTZ features: (1)20 MSPS Correlated Double Sampler (CDS); (2)4 dB 6 dB Variable CDS Gain with 6-Bit Resolution; (3)2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA); (4)Low Noise Clamp Circuits; (5)Analog Preblanking Function; (6)12-Bit 20 MSPS A/D Converter; (7)Auxiliary Inputs with VGA and Input Clamp; (8)3-Wire Serial Digital Interface; (9)3 V Single Supply Operation; (10)Low Power: 65 mW 2.7 V Supply; (11)48-Lead LQFP Package.

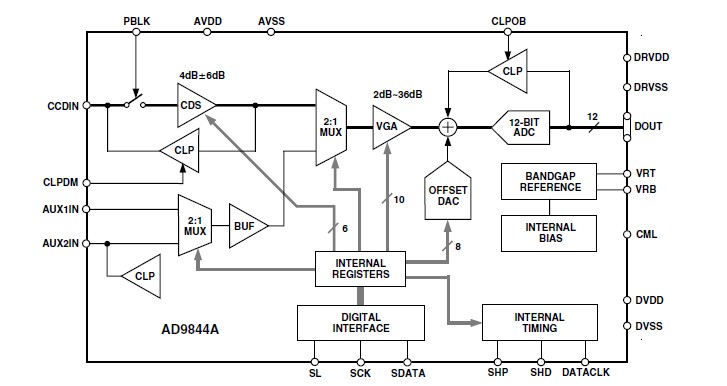

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9844AJSTZ |
Analog Devices Inc |
IC CCD SIGNAL PROC 12BIT 48LQFP |
Data Sheet |
|
|
||||||
|
AD9844AJSTZRL |
Analog Devices Inc |
IC CCD SIGNAL PROC 12BIT 48LQFP |
Data Sheet |
|
|
||||||
