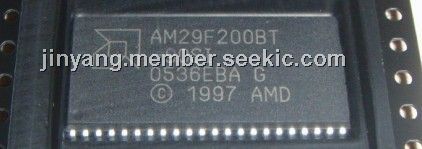

Product Summary

The AM29F200BT-90SI is a 2 Mbit, 5.0 Volt-only Flash memory organized as 262,144 bytes or 131,072 words. It is offered in 44-pin SO and 48-pin TSOP packages. It is also available in Known Good Die (KGD) form. The AM29F200BT-90SI is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The AM29F200BT-90SI can also be reprogrammed in standard EPROM programmers. It requires only a single 5.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations. The AM29F200BT-90SI is entirely command set compatible with the JEDEC single-power-supply Flash standard.

Parametrics

AM29F200BT-90SI absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65 to +150℃; (2)Ambient Temperature with Power Applied: –55 to +125℃; (3)Voltage with Respect to Ground VC: –2.0 V to +7.0 V; A9, OE, and; (4)RESET: –2.0 V to +12.5 V; All other pins: –0.5 V to +7.0 V; (5)Output Short Circuit Current: 200 mA.

Features

AM29F200BT-90SI features: (1)Manufactured on 0.32 μm process technology; (2)High performance; (3)Low power consumption; (4)Compatible with JEDEC standards; (5)Erase Suspend/Erase Resume; (6)One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and three 64 Kbyte sectors (byte mode); (7)One 8 Kword, two 4 Kword, one 16 Kword, and three 32 Kword sectors (word mode); (8)Supports full chip erase; (9)A hardware method of locking a sector to prevent any program or erase operations within that sector; (10)Sectors can be locked via programming equipment; (11)Temporary Sector Unprotect feature allows code changes in previously locked sectors.

Diagrams

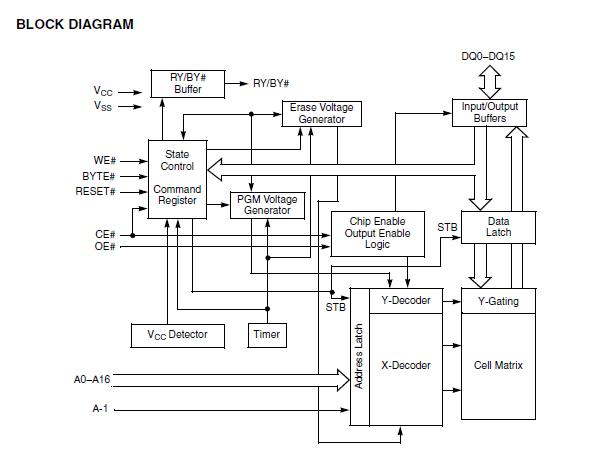

AM29F200BT-90SI circuit diagram
