Product Summary

The MAX110BCPE+ is an analog-to-digital converter(ADC). It uses an internal auto-calibration technique to achieve 14-bit resolution plus overrange, with no external components. Operating supply current is only 550uA (MAX110BCPE+) and reduces to 4uA in power-down mode, making these ADCs ideal for high-resolution battery-powered or remote-sensing applications. The applications of the MAX110BCPE+ are Process Control, Weigh Scales, Panel Meters, Data-Acquisition Systems, Temperature Measurement.

Parametrics

MAX110BCPE+ absolute maximum ratings: (1)VDD to GND:+6V; (2)VSS to GND:+0.3V to -6V; (3)AGND to DGND:-0.3V to +0.3V; (4)VIN1+, VIN1- :(VDD + 0.3V) to (VSS - 0.3V); (5)VIN2+, VIN2- :(VDD + 0.3V) to (VSS - 0.3V); (6)VREF+, VREF- :(VDD + 0.3V) to (VSS - 0.3V); (7)Digital Inputs and Outputs:(VDD + 0.3V) to -0.3V; (8)Operating Temperature Ranges:0℃ to +70℃; (9)Storage Temperature Range:-65℃ to +160℃; (10)Lead Temperature (soldering, 10sec):+300℃.

Features

MAX110BCPE+ features: (1)Two Differential Input Channels; (2)14-Bit Resolution Plus Sign and Overrange; (3)0.03% Linearity; (4)Low Power Consumption:550μA, 4μA Shutdown Current; (5)Up to 50 Conversions/sec; (6)50Hz/60Hz Rejection; (7)Auto-Calibration Mode; (8)No External Components Required; (9)16-Pin DIP/SO, 20-Pin SSOP.

Diagrams

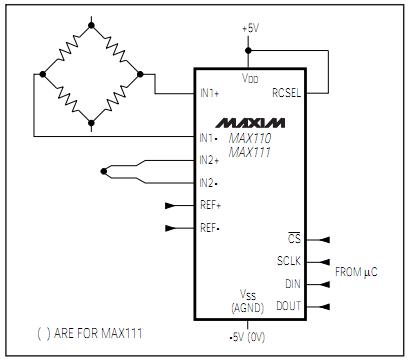

MAX110BCPE+ circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX110BCPE+
MAX110BCPE+

Maxim Integrated Products

ADC (A/D Converters) 2Ch +/-14Bit Serial

Data Sheet

0-1: $9.89
1-25: $6.64
25-50: $4.81
50-100: $4.75
