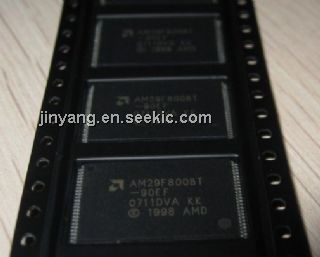

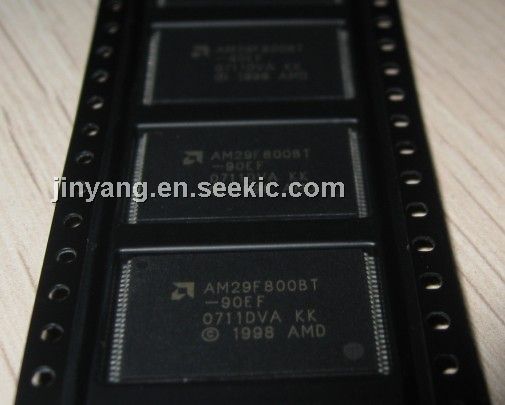

The AM29F800BT-90EF is an 8 Mbit, 5.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The AM29F800BT-90EF is offered in 44-pin SO, 48-pin TSOP, and 48-ball FBGA packages. The AM29F800BT-90EF is also available in Known Good Die (KGD) form. For more information, refer to publication number 21631. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. This device is designed to be programmed in-system with the standard system 5.0 volt VCC supply. A 12.0 V VPP is not required for write or erase operations. The AM29F800BT-90EF can also be programmed in standard EPROM programmers.
Parametrics
AM29F800BT-90EF absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground, VCC: –2.0 V to +7.0 V; A9, OE, and RESET: –2.0 V to +12.5 V; All other pins: –0.5 V to +7.0 V; (4)Output Short Circuit Current: 200 mA.
Features
AM29F800BT-90EF features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)High performance; (4)Low power consumption (typical values at 5 MHz; (5)Flexible sector architecture; (6)Top or bottom boot block configurations; (7)available; (8)Embedded Algorithms; (9)Minimum 1,000,000 program/erase cycles per sector guaranteed.

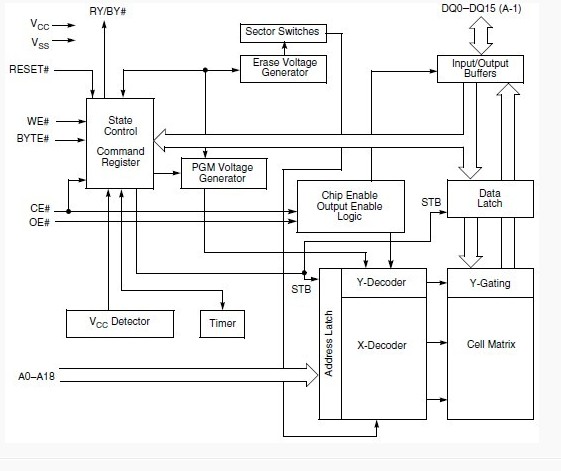

Diagrams
