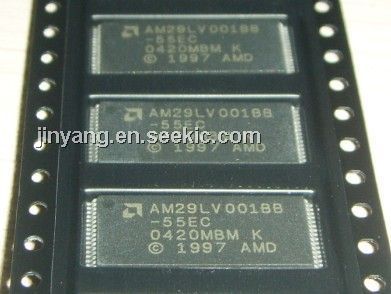

Product Summary
The AM29LV001BB-55EC is a 1 Mbit, 3.0 Volt-only Flash memory device organized as 131,072 bytes. The AM29LV001BB-55EC has a boot sector architecture. The AM29LV001BB-55EC is offered in 32-pin PLCC and 32-pin TSOP packages. The byte-wide (x8) data appears on DQ7– DQ0. All read, erase, and program operations are accomplished using only a single power supply. The AM29LV001BB-55EC can also be programmed in standard EPROM programmers.
Parametrics
AM29LV001BB-55EC absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65°C to +150°C; (2)Ambient Temperature with Power Applied: –65°C to +125°C; (3)Voltage with Respect to Ground All pins except A9, OE# and RESET# : –0.5 V to VCC+0.5 V, VCC: –0.5 V to +3.6 V; (4)A9, OE#, and RESET#: –0.5 V to +12.5 V; (5)Output Short Circuit Current: 200 mA.
Features
AM29LV001BB-55EC features: (1)Single power supply operation; (2)Manufactured 0.35 μm process technology; (3)High performance; (4)Ultra low power consumptio(typical values at 5 MHz); (5)Unlock Bypass Mode Program Command; (6)Top or bottom boot block configurations available; (7)Embedded Algorithms; (8)Minimum 1,000,000 write cycle guarantee per sector; (9)Package option; (10)Compatibility with JEDEC standards; (11)Data# Polling and toggle bits; (12)Erase Suspend/Erase Resume.

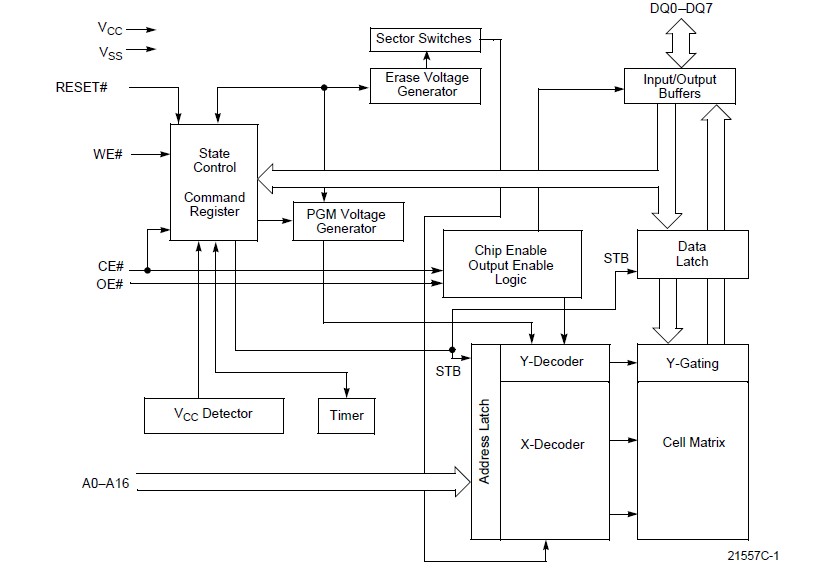

Diagrams
