Product Summary
The AT28BV256-20TU is a high-performance electrically erasable and programmable readonly memory. Its 256K of memory is organized as 32,768 words by 8 bits. Manufactured with Atmels advanced nonvolatile CMOS technology, the AT28BV256-20TU offers access times to 200 ns with power dissipation of just 54 mW. Atmels AT28BV256-20TU has additional features to ensure high quality and manufacturability. The device utilizes internal error correction for extended endurance and improved data retention characteristics. An optional software data protection mechanism is available to guard against inadvertent writes. The device also includes an extra 64 bytes of EEPROM for device identification or tracking.
Parametrics
AT28BV256-20TU absolute maximum ratings: (1)temperature under bias: -55 to 125℃; (2)storage temperature: -65 to 150℃; (3)all input voltage: -0.6 to 6.25V; (4)All output voltage: -0.6 to VCC+0.5V; (5)Voltage on OE and A9 with respect to ground: -0.6 to 13.5V.
Features
AT28BV256-20TU features: (1)Single 2.7V - 3.6V Supply; (2)Fast Read Access Time – 200 ns; (3)Automatic Page Write Operation; (4)Fast Write Cycle Times; (5)Low Power Dissipation; (6)Hardware and Software Data Protection; (7)Data Polling for End of Write Detection; (8)High Reliability CMOS Technology; (9)JEDEC Approved Byte-wide Pinout; (10)Industrial Temperature Ranges; (11)Green (Pb/Halide-free)Packaging Option.

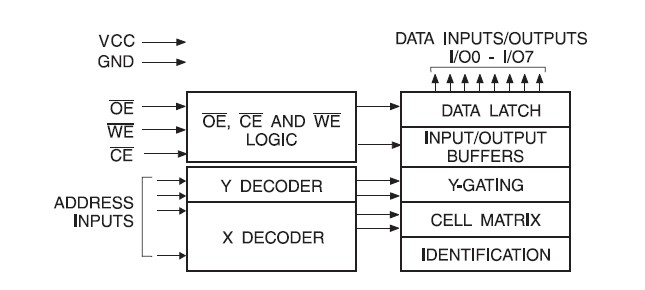

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

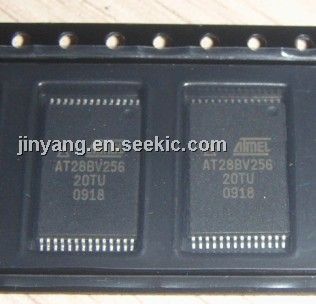

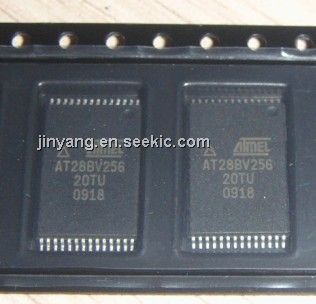

AT28BV256-20TU |
Atmel |
EEPROM 256K 32K x 8 200 ns 2.7V-3.6V |
Data Sheet |
|
|
|||||||||||||
