Product Summary
The XC56L307VL160 24-Bit Digital Signal Processor is intended for applications requiring a large amount of internal memory, such as networking and wireless infrastructure applications. The EFCOP of the XC56L307VL160 can accelerate general filtering applications, such as echo-cancellation applications, correlation, and general-purpose convolutionbased algorithms.
Parametrics
XC56L307VL160 maximum ratings: (1)Supply Voltage VCC: –0.1 to 2.0 V; (2)Input/Output Supply Voltage VCCQH: –0.3 to 4.0 V; (3)All input voltages VIN GND: – 0.3 to VCCQH + 0.3 V; (4)Current drain per pin excluding VCC and GND I: 10 mA; (5)Operating temperature range TJ: –40 to +100 ℃; (6)Storage temperature TSTG: –55 to +150 ℃.
Features
XC56L307VL160 features: (1)Random read or write cycle time tRC 16 × TC: 160.0 ns; (2)RAS assertion to data valid (read) tRAC 8.25 × TC - 5.7: 76.8 ns; (3)CAS assertion to data valid (read) tCAC 4.75 × TC -5.7: 41.8 ns; (4)Column address valid to data valid (read) tAA 5.5 × TC -5.7: 49.3 ns; (5)CAS deassertion to data not valid (read hold time) tOFF: 0.0ns; (6)RAS deassertion to RAS assertion tRP 6.25 × TC -4.0: 58.5ns.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

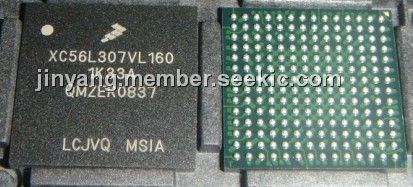

 XC56L307VL160 |
|
IC DSP 24BIT FIXED POINT 196-BGA |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
XC56309VF100AR2 |
|
IC DSP 24BIT 100MHZ 196-MABGA |
Data Sheet |
Negotiable |
|
||||||
|
XC56309VL100A |
|
IC DSP 24BIT 100MHZ 196-MAPBGA |
Data Sheet |
|
|
||||||
|
XC56309VL100AR2 |
|
IC DSP 24BIT 100MHZ 196-MAPBGA |
Data Sheet |
|
|
||||||
|
XC56L307VF160 |
|
IC DSP 24BIT FIXED POINT 196-BGA |
Data Sheet |
Negotiable |
|
||||||
|
XC56L307VL150 |
|
IC DSP 24BIT 150MHZ 196-MABGA |
Data Sheet |
Negotiable |
|
||||||
|
XC56L307VL160 |
|
IC DSP 24BIT FIXED POINT 196-BGA |
Data Sheet |
Negotiable |
|
||||||
