AT43301-SU

AT43301-SU, Low-cost USB Hub Controller, 48 MHz, 5V, SOP24

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.70~0.78 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.70~0.78

PartNumber:: AT43301-SU

Brand:: ATMEL Corporation - ATMEL | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Wendy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-31

From Other Seller

Part Number:AT43301-SU
US $0.70 - 0.78
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

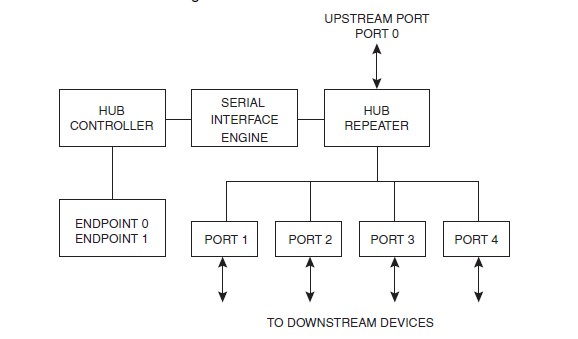

The AT43301-SU is a 5-port USB hub chip supporting one upstream and four downstream ports. The AT43301-SU connects to an upstream hub or host/root hub via Port0, while the other ports connect to external downstream USB devices. The hub re-transmits the USB differential signal between Port0 and Ports[1:4] in both directions. The AT43301-SU is designed for very low-cost bus-powered or self-powered hub applications and is available in a 24-lead SOIC and a 32-lead LQFP packages. The 32-lead version of the AT43301, the AT43301-AC, has a 48 MHz clock input. The AT43301-SUupports the 12 Mb/s full speed as well as 1.5 Mb/s slow speed USB transactions. To reduce EMI, the AT43301-SU’s oscillator frequency is 6 MHz even though some internal circuitry operates at 48 MHz.

Parametrics

AT43301-SU absolute maximum ratings: (1)5V Power Supply: 5.5V; (2)DC Input Voltage: -0.3V; (3)DC Output Voltage: -0.3V; (4)Operating Temperature: -40 ~+125℃; (5)Storage Temperature: -65 ~+150℃.

Features

AT43301-SU features: (1)Full Compliance with USB Spec Rev 1.1; (2)Four Downstream Ports; (3)Full-speed and Low-speed Data Transfers; (4)Bus-powered Controller; (5)Bus-powered or Self-powered Hub Operation; (6)Port Overcurrent Monitoring; (7)Port Power Switching; (8)5V Operation with On-chip 3.3V Regulator; (9)24-lead SOIC and 32-lead LQFP.
