Product Summary
The ST10F269Z2Q6 is a 16-bit MCU with mac unit, 256K byte flash memory and 12k byte RAM. The ST10F269Z2Q6 is a derivative of the STMicroelectronics ST10 family of 16-bit single-chip CMOS microcontrollers. It combines high CPU performance (up to 20 million instructions per second) with high peripheral functionality and enhanced I/O-capabilities. The ST10F269Z2Q6 also provides on-chip high-speed single voltage Flash memory, on-chip high-speed RAM, and clock generation via PLL.
Parametrics
ST10F269Z2Q6 absolute maximum ratings: (1)VDD Voltage on VDD pins with respect to ground: -0.5, +6.5 V; (2)VIO Voltage on any pin with respect to ground: -0.5, (VDD +0.5) V; (3)VAREF Voltage on VAREF pin with respect to ground: -0.3, (VDD +0.3) V; (4)IOV Input Current on any pin during overload condition: -10, +10 mA; (5)ITOV Absolute Sum of all input currents during overload condition: |100| mA; (6)Ptot Power Dissipation: 1.5 W; (7)TA Ambient Temperature under bias: -40, +125 ℃; (8)Tstg Storage Temperature: -65, +150 ℃.
Features
ST10F269Z2Q6 features: (1)High performance 40 mhz cpu with dsp function; (2)Memory organization; (3)Fast and flexible bus; (4)Two 16-channel capture / compare units; (5)4-channel PWM unit; (6)two can 2.0b interfaces operating on one or two can busses (30 or 2×15 message objects); (7)fail-safe protection; (8)idle and power down modes; (9)single voltage supply: 5v ±10% (embedded regulator for 3.3 v core supply); (10)temperature ranges: -40 +125℃, -40 to 85℃; (11)144-pin pqfp package.

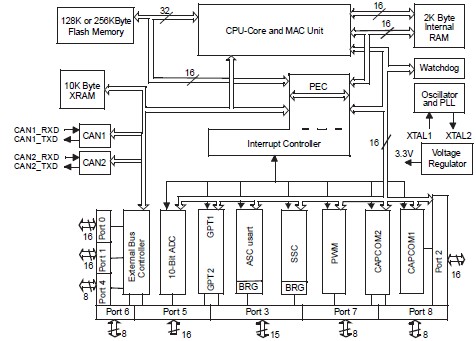

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ST10F269Z2Q6 |
STMicroelectronics |
16-bit Microcontrollers (MCU) 256K Flash 12K RAM |
Data Sheet |
|
|
||||||||||
|
ST10F269Z2Q6/TR |
STMicroelectronics |
16-bit Microcontrollers (MCU) 16B MCU 256K Byte and 12K Byte RAM |
Data Sheet |
|
|
||||||||||
