Product Summary

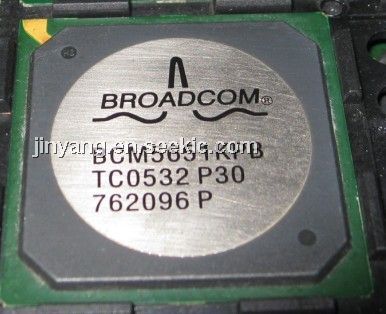

The BCM5651KPB network switch is the most advanced multi-layer, singlechip solution for high density 24 x 10/100 Mbps ports and 4 x 10/100/ 1000 Mbps Ethernet uplinks. With an aggregate line rate of 9.5 Mpps, the BCM5651KPB offers hardware switching on L2 traffic. Filtering, policing, and priority tagging can be performed in real time with no impact on forwarding performance. Applications of the BCM5651KPB are (1)high-density multi-layer scalable enterprise 10/100/ 1000 Mbps L2 Ethernet switches; (2)multi-tenant unit (MTU)metro ethernet VPN multi-layer switches; (3)service provider Metro Ethernet VPN edge switches.
Features
BCM5651KPB features: (1)24 x 10/100 Mbits, 4 x 10/100/1000 Mbps Ethernet ports; (2)9.5 Mpps (line rate)aggregate L2 switching capacity; (3)Integrated L2 table (16K)with auto learning/aging; (4)Double 802.1Q (Q in Q)VLAN stacking; (5)MPLS tunnel/VC packet labeling for L2 VPN; (6)Scalable Fast/Gigabit Ethernet in a system; (7)Eight Classes of Service (COS)with WRED and WRR, DSCP/ 802.1p priority; (8)256 spanning trees (802.1s and 802.1w); (9)32 link aggregation trunk groups and mirroring; (10)Up to 256 L2 multicast groups and hardware packet replication; (11)Flow control (802.3x)and HOL blocking prevention; (12)64 data bit DDR SDRAM with up to 32 MB of buffer memory; (13)ContentAware™ network processing per port; (14)Line-rate, multi-field packet classification; (15)Support for 802.1p, TOS/DiffServ, rate limiting, policing, and priority/VLAN (single or double)tagging and remapping.

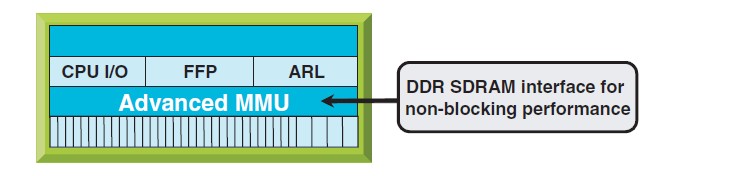

Diagrams
