MC68HC11G5FN1

Product Summary

The MC68HC11G5FN1, which includes 16 kilobytes of on-board ROM, is a member of the M68HC11 family of advanced capability MCUs. The MC68HC11G5FN1 has 512 bytes of on-board static RAM and a nonmultiplexed expanded bus for accessing external memory. The serial I/O system consists of an asynchronous NRZ Serial Communications Interface (SCI) plus a synchronous Serial Peripheral Interface (SPI). The A/D converter is enhanced to 10 bits. The MC68HC11G5FN1 also includes a real time interrupt circuit and a Computer Operating Properly (COP) watchdog system, as on the original MC68HC11A8.

Parametrics

MC68HC11G5FN1 absolute maximum ratings: (1)Supply Voltage, VDD: – 0.5 to 7.0 V; (2)Input Voltage, Vin: VSS – 0.5 to VDD + 0.5 V; (3)Operating Temperature Range, TA, LT to TH: – 40 to 85℃; (4)Storage Temperature Range, Tstg: – 65 to 150℃; (5)Current Drain per Pin,Excluding VDD and VSS, ID: 25 mA.

Features

MC68HC11G5FN1 features: (1)Low-power/high-performance M68HC11 CPU core; (2)16 kilobytes of ROM; (3)256 bytes of bootstrap ROM; (4)512 bytes of static RAM; (5)RAM, registers and I/O mappable to any 4k boundary; (6)Expanded non-multiplexed data/address buses give access to a total address space of 64; (7)kilobytes; (8)Maximum of seven 8-bit, one 6-bit and one 4-bit I/O ports; (9)2 separate 16-bit timers, each with its own E-clock divider circuitry; (10)External clock option on Timer 2; (11)4 output compare (OC), 3 input capture (IC) and 3 selectable OC/IC channels; (12)4 PWM timers, each with its own counter and programmable period and duty cycle; (13)Dual event counter featuring phase-shifter, pulse accumulator, periodic timer and 256 clock divider; (14)8-channel, 10-bit A/D converter with 1, 4 and 8-channel scanning modes; (15)COP watchdog timer and clock monitor; (16)Serial I/O system incorporating asynchronous NRZ and synchronous SPI; (17)Single Chip, Expanded, Bootstrap and Test modes of operation; (18)84-pin PLCC package (quad surface mount plastic).

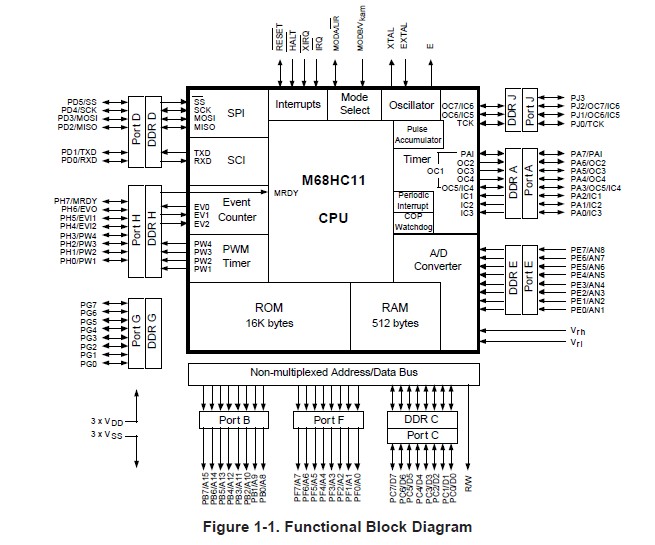

Diagrams
