Product Summary

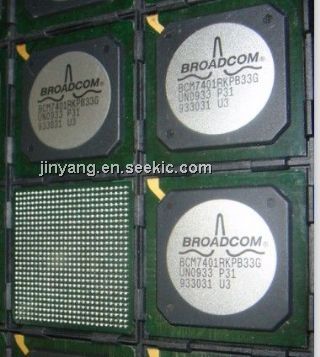

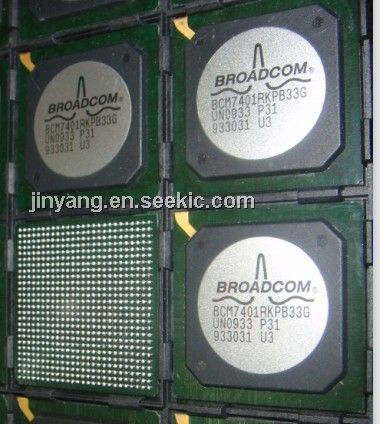

The BCM7401RKPB33G is a high-definition satellite, cable, and IP set-top box DVR solution offering integrated AVC (H.264/MPEG-4 Part 10), MPEG-2, and VC-1 video decoding technology. The BCM7401RKPB33G incorporates a complete MIPS32-based microprocessor subsystem, including caches with bridging to memory and a local bus. Integrated peripherals include three UARTS, two ISO7816 smart card interfaces, counter/timers, a GPIO, a LED/keypad controller, IR receivers, an IR blaster, a UHF remote control receiver, an integrated soft modem system side device, and BSC and SPI controllers.
Features
BCM7401RKPB33G features: (1)Motion-adaptive deinterlacer with reverse 3:2/2:2 pulldown; (2)Letterbox detection; (3)Multiple simultaneous, independent DVR channels; (4)OpenCable ready with on-chip MPOD support; (5)300-MHz MIPS32/16e class processor; (6)64-bit DDR DRAM controller; (7)SATA I/F for DVR applications; (8)HDMI 1.1/DVI 1.0 Mac and PHY with HDCP 1.1; (9)Broadcom security processor; (10)AES/1DES/3DES/CSS/CPRM/DTCP copy protection; (11)MPEG-2/DIRECTV/DVB/ARIB data transport demux with 1DES/3DES/DVB/Multi2/AES descramblers; (12)V.92-capable soft modem with integrated SiLab Si305x system side device; (13)3.3V 33-MHz PCI 2.2; (14)Dual USB 2.0 host controller with dual-port transceiver; (15)Serial ATA interface; (16)Ethernet Mac and PHY; (17)UHF remote control receiver; (18)Dual smart card support.
