Product Summary

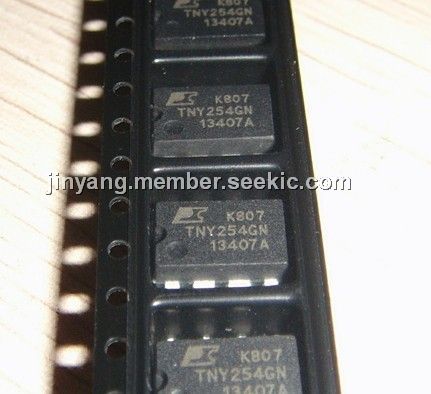

The TNY254GN-TL is a energy efficient, low power off-line switcher. Its package is SMD-8. It uses a breakthrough design to provide the lowest cost, high efficiency, off-line switcher solution in the 0 to 10 W range.
Parametrics
Absolute maximum ratings: (1)DRAIN Voltage: - 0.3 V to 700 V; (2)Peak DRAIN Current (TNY253/4): 400 mA; (3)Peak DRAIN Current (TNY255): 530 mA; (4)ENABLE Voltage: - 0.3 V to 9 V; (5)ENABLE Current: 100 mA; (6)BYPASS Voltage: -0.3 V to 9 V; (7)Storage Temperature: -65 to 150 ℃; (8)Operating Junction Temperature: -40 to 150 ℃; (9)Lead Temperatur: 260 ℃; (10)Thermal Impedance (θJC): 11 ℃/W.
Features
Features: (1)Lowest Cost, Low Power Switcher Solution; (2)Extremely Energy Efficient; (3)High Performance at Low Cost.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TNY254GN-TL |
Power Integrations |
AC/DC Switching Converters 4W 85-265 VAC 5W 100/115/230 VAC |
Data Sheet |
|
|
|||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
TNY253 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TNY253G |
Power Integrations |
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC |
Data Sheet |
Negotiable |
|
|||||||||||||
TNY253GN |
Power Integrations |
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC |
Data Sheet |
|
|
|||||||||||||
TNY253GN-TL |
Power Integrations |
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC |
Data Sheet |
|
|
|||||||||||||
TNY253G-TL |
Power Integrations |
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC |
Data Sheet |
Negotiable |
|
|||||||||||||
TNY253P |
Power Integrations |
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC |
Data Sheet |
Negotiable |
|
