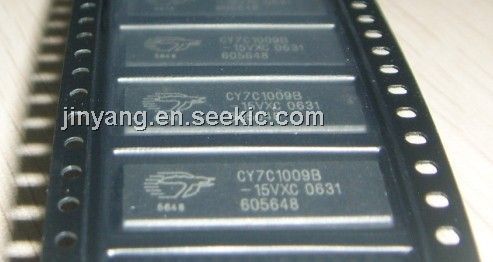

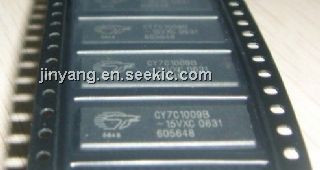

CY7C1009B-15VXC

high-performance CMOS static RAM, 7.0V, 200 mA, 495 mW, SOJ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~4.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	4.50 / Piece
500 ~ 1000 :	4.20 / Piece
1000 ~ 5000 :	4.00 / Piece

PartNumber:: CY7C1009B-15VXC

Brand:: Cypress Semiconductor - Cypress | Pack: SOJ | D/C: 06+

Availability:: Supply Ability: 100/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Wendy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-05

From Other Seller

Part Number:CY7C1009B-15VXC
US $4.00 - 4.50
Quantity:

piece

Product Summary

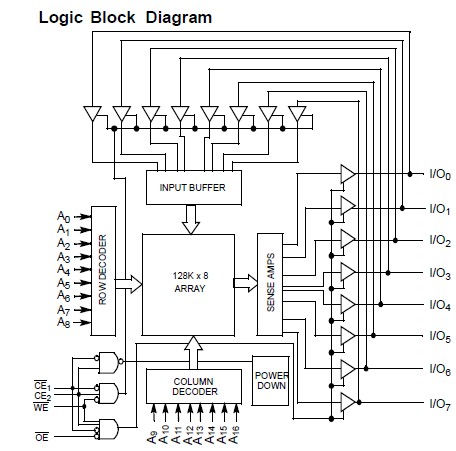

The CY7C1009B-15VXC is a high-performance CMOS static RAM organized as 131,072 words by 8 bits. Easy memory expansion is provided by an active LOW Chip Enable (CE1), an active HIGH Chip Enable (CE2), an active LOW Output Enable (OE), and tri-state drivers. Writing to the device is accomplished by taking Chip Enable One (CE1) and Write Enable (WE) inputs LOW and Chip Enable Two (CE2) input HIGH. The CY7C1009B-15VXC is available in standard 400-mil-wide SOJ and 32- pin TSOP type I packages. The CY7C1009B is available in a 300-mil-wide SOJ package.

Parametrics

CY7C1009B-15VXC absolute maximum ratings: (1)Storage Temperature : –65°C to +150°C; (2)Ambient Temperature with Power Applied: –55°C to +125°C; (3)Supply Voltage on VCC to Relative GND[3] : –0.5V to +7.0V; (4)DC Voltage Applied to Outputs in High Z State[3] : –0.5V to VCC + 0.5V, DC Input Voltage[3]: –0.5V to VCC + 0.5V; (5)Current into Outputs (LOW): 20 mA; (6)Static Discharge Voltage: >2001V; (7)(per MIL-STD-883, Method 3015); (8)Latch-Up Current: >200 mA.

Features

CY7C1009B-15VXC features: (1)High speed: tAA = 12 ns; (2)Low active power: 495 mW (max.); (3)Low CMOS standby power: 11 mW (max.)(L Version); (4)2.0V Data Retention; (5)Automatic power-down when deselected; (6)TTL-compatible inputs and outputs; (7)Easy memory expansion with CE1, CE2, and OE options; (8)CY7C109B is available in standard 400-mil-wide SOJ and 32-pin TSOP type I packages. The CY7C1009B is available in a 300-mil-wide SOJ package.
