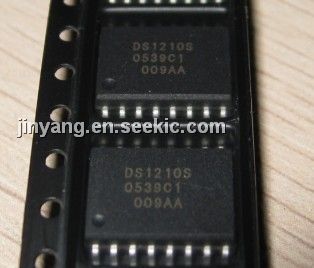

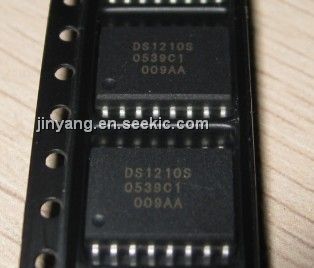

DS1210S

DS1210S, Nonvolatile Controller Chip, 7.0V, 7 pF, 5 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.50~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	5.00 / Piece
100 ~ 500 :	4.80 / Piece
500 ~ 1000 :	4.50 / Piece

PartNumber:: DS1210S

Brand:: Dallas Semiconductor - Maxim | Pack: SOP | D/C: 05+

Availability:: Supply Ability: 100/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Wendy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-21

From Other Seller

Part Number:DS1210S
US $4.50 - 5.00
DS1210S

US $0.70 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DS1210S Nonvolatile Controller Chip is a CMOS circuit which solves the application problem of converting CMOS RAM into nonvolatile memory. Incoming power is monitored for an out-of-tolerance condition. When such a condition is detected, the DS1210S enable is inhibited to accomplish write protection and the battery is switched on to supply the RAM with uninterrupted power. Special circuitry uses a lowleakage CMOS process which affords precise voltage detection at extremely low battery consumption. The 8-pin DIP package keeps PC board real estate requirements to a minimum. By combining the DS1210S Nonvolatile Controller Chip with a CMOS memory and batteries, nonvolatile RAM operation can be achieved.

Parametrics

DS1210S absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.3V to +7.0V; (2)Operating Temperature: 0°C to 70°C; (3)Storage Temperature: -55°C to +125°C; (4)Soldering Temperature: 260°C for 10 seconds; (5)Supply Current ICCI: 5 mA; (6)Input Capacitance CIN: 5 pF; (7)Output Capacitance COUT: 7 pF.

Features

DS1210S features: (1)Converts CMOS RAMs into nonvolatile memories; (2)Unconditionally write protects when VCC is out of tolerance; (3)Automatically switches to battery when power-fail occurs; (4)Space saving 8-pin DIP; (5)Consumes less than 100 nA of battery current; (6)Tests battery condition on power up; (7)Provides for redundant batteries; (8)Optional 5% or 10% power-fail detection; (9)Low forward voltage drop on the VCC switch; (10)Optional 16-pin SOIC surface mount package; (11)Optional industrial temperature range of -40°C to +85°C.
