Product Summary
The M34116B1 is a PCM conference call and tone generation circuit. The device is specifically designed for applications in PCM digital exchanges. The M34116B1 is able to handle up to 64 channels in any conferences combination from 1 to 29 conferences in parallel and to generate seven different tones and one melody. The parties in a conference must previously be allocated through the Digital Switching Matrix in a single serial wire at M34116B1 PCM input (IN PCM pin). The M34116B1 is full pin and function compatible with the M116. In addition, it has the capability to generate tone directly coded in PCM.
Parametrics
M34116B1 absolute maximum ratings: (1)VDD, Supply Voltage: -0.3 to 7 V; (2)Vi, Input Voltage: -0.3 to VDD; (3)VO (off), Off State Output Voltage: -0.3 to 7 V; (4)Ptot, Total Power Dissipation: 500 mW; (5)Tstg, Storage Temperature: -65 to 150℃; (6)Top, Operating Temperature: 0 to 70℃.
Features
M34116B1 features: (1)hw and sw compatible with m116; (2)1 to 64 serial channels per frame (controlled by sync signal period); (3)29 maximum conferences; (4)1 to 64 serial channels per conferences; (5)3 simultaneous operation modes available: conference, transparent and tone generation; (6)typical bit rates: 1536/1544/2048/4096 kbits/s; (7)compatible with all kinds of pcm format; (8)μ and a law (pin programmable); (9)equal priority to every channel; (10)one frame and one channel delay from sending to receiving; (11)overflow information for each conference by pin os (overflow signalling) and on data bus on mpu request.

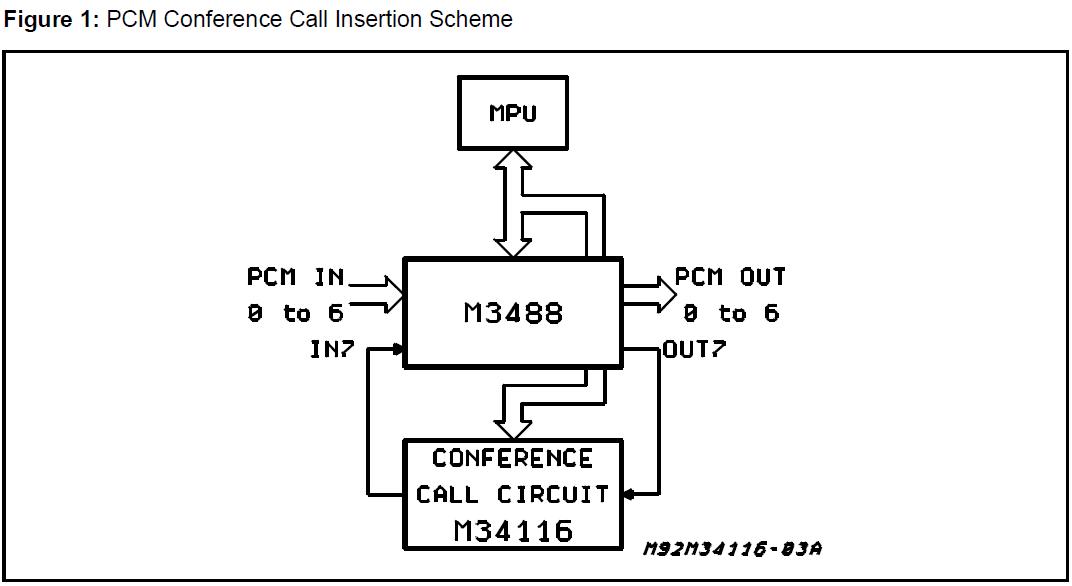

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M34116B1 |
|

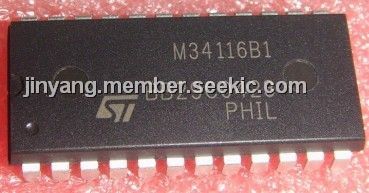

IC PCM TONE CIRCUIT 24-DIP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
M34116 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
M34116B1 |
|
IC PCM TONE CIRCUIT 24-DIP |
Data Sheet |
Negotiable |
|
||||
