DS2433

4k-bit 1-wire EEPROM, 7.0V, 120 ms, 5kW, SOIC8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.50 / Piece
100 ~ 500 :	3.00 / Piece
500 ~ 1000 :	2.50 / Piece

PartNumber:: DS2433

Brand:: Dallas Semiconductor - Maxim | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 50/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Wendy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-01

From Other Seller

Part Number:DS2433
US $2.50 - 3.50
DS2433+

US $1.40 - 2.05 / Piece
(0) Remove
DS2433-500

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

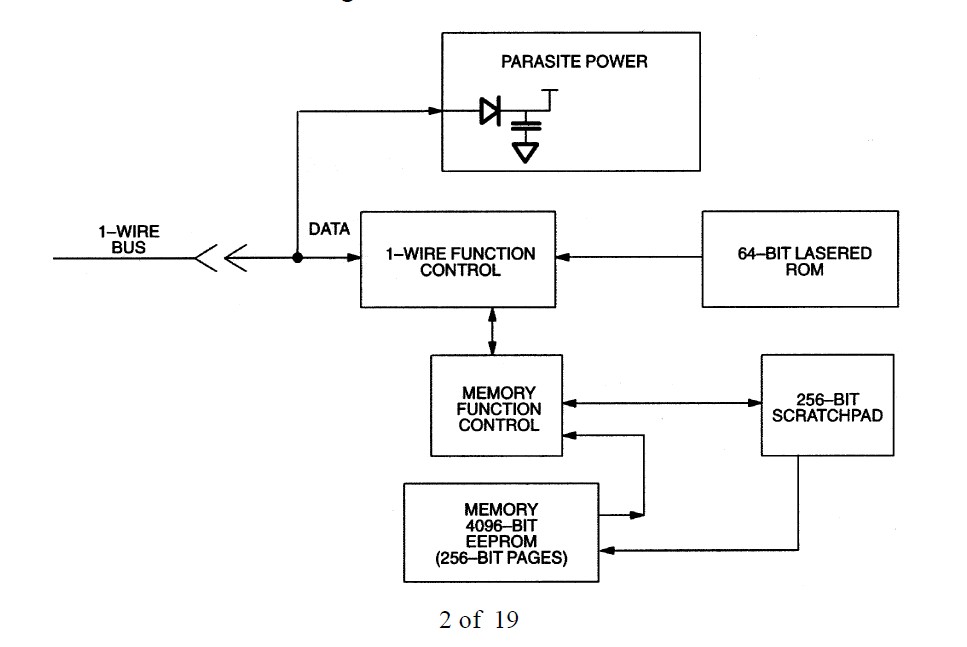

The DS2433 is a 4k-bit 1-wire EEPROM. The DS2433 4K-bit 1-Wire EEPROM identifies and stores relevant information about the product to which it is associated. This lot or product specific information of the DS2433 can be accessed with minimal interface, for example a single port pin of a microcontroller. The DS2433 consists of a factory-lasered registration number that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit Family Code (23h) plus 4096 bits of user-programmable EEPROM.

Parametrics

DS2433 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.5V to +7.0V; (2)Operating Temperature: -40℃ to +85℃; (3)Storage Temperature: -55℃ to +125℃; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

DS2433 features: (1)Built-in multidrop controller ensures compatibility with other MicroLAN products; (2)Memory partitioned into sixteen 256-bit pages for packetizing data; (3)256-bit scratchpad with strict read/write protocols ensures integrity of data transfer; (4)Reduces control, address, data and power to a single data pin; (5)Directly connects to a single port pin of a microprocessor and communicates at up to 16.3k bits per second; (6)Overdrive mode boosts communication speed to 142k bits per second; (7)8-bit family code specifies DS2433 communication requirements to reader.
