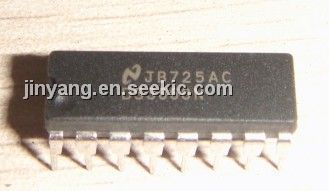

DS3668N, quad peripheral driver, 15V, 2075 mW, 100 μA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.50~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	4.00 / Piece
100 ~ 500 :	3.80 / Piece
500 ~ 1000 :	3.50 / Piece

PartNumber:: DS3668N

Brand:: Dallas Semiconductor - Maxim | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 120/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Wendy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-01

From Other Seller

Part Number:DS3668N
US $3.50 - 4.00
Quantity:

piece

Product Summary

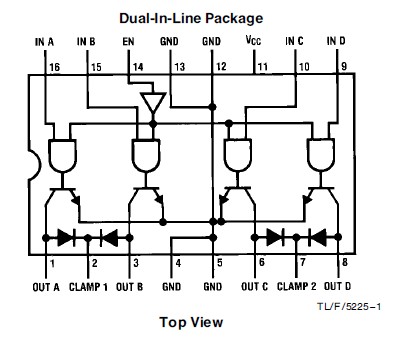

The DS3668N quad peripheral driver is designed for those applications where low operating power, high breakdown voltage, high output current and low output ON voltage are required. Unlike most peripheral drivers available, the DS3668N is incorporated on each output. When the load current exceeds 1.0A (approximately) on any output for more than a built-in delay time, nominally 12 ms, that output will be shut off by its protection circuitry with no effect on other outputs. Applications of the DS3668N are (1)relay drivers; (2)solenoid drivers; (3)hammer drivers; (4)stepping motor drivers; (5)triac drivers; (6)led drivers; (7)high current, high voltage drivers; (8)level translators; (9)fiber optic led drivers.

Parametrics

DS3668N absolute maximum ratings: (1)Supply Voltage: 7.0V; (2)Input Voltage: 15V; (3)Output Voltage: 70V; (4)Continuous Power Dissipation: 2075 mW; (5)Storage Temperature Range: 65°C to a150°C; (6)Lead Temperature (Soldering, 4 seconds): 260°C; (7)IR Diode Leakage Current VR e 70V: 100 μA.
