Product Summary

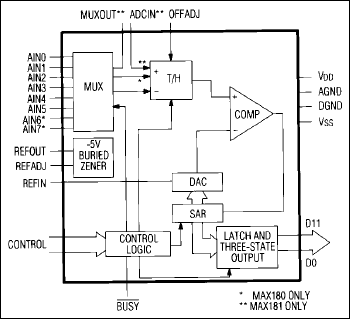

The MAX180CCQH is a complete 12-bit Data Acquisition System (DAS) which combines 8/6 channel input multiplexer, high bandwidth Track-and-Hold (T/H), low-drift zener reference, and flexible microprocessor (µP) interface with high conversion speed and low power consuption. The MMAX180CCQH can be configured by a µP for unipolar or bipolar conversions and single-ended or differential inputs. Both devices sample and digitize at 100kHz throughout rate and feature a fast 8- or 16-bit µP interface. The MAX180CCQH has 8 analog input channels. The MAX180CCQH is ideal for: (1)Automated Test Equipment (ATE); (2)Digital Signal Processing (DSP); (3)High-Accuracy Process Control; (4)High-Speed Servo Loops.

Parametrics

MAX180CCQH absolute maximum ratings: (1)VDD to DGND: -0.3V, +7V; (2)VSS to DGND: -0.3V, -17V; (3)AGND to DGND: -0.3V, VDD+0.3V; (4)AIN_, MUXOUT, ADCIN, REFADJ, OFFADJ to REFIN: -0.3V, VDD+0.3V; (5)REFIN to DGND: +0.3V, VSS+0.3V; (6)CS, WR, RD, CLK, A2-A0, BIF, DIFF, HBEN to DGND: -0.3V, VDD+0.3V; (7)BUSY, D0-D11 to DGND: -0.3V, VDD+0.3V; (8)Continuous Power Dissipation (any package) to +70℃: 1000 mW; (9)Operating Temperature Range: 0 to +70℃; (10)Storage Temperature Range: -65 to +160℃; (11)Lead Temperature (Soldering, 10 sec): +300℃.

Features

MAX180CCQH features: (1)12-Bit Resolution, ±1/2 LSB Linearity; (2)8-Channel Multiplexer Inputs (MAX180); (3)Single-Ended 1-of-6 Multiplexer (MAX181); (4)Built-In Track-and Hold; (5)100kHz Sampling Rate; (6)DC and Dynamically Tested; (7)Internal 25ppm/℃ Voltage Reference; (8)Each Channel Configurable for Unipolar (0V to +5V) or Bipolar (-2.5V to +2.5V) Input Range; (9)Each Channel Configurable for Single-Ended or Differential Inputs; (10)Fast 8-/16-Bit μP Interface; (11)+5V and -12V to -15V Supply Operation; (12)110mW Power Consumption.
