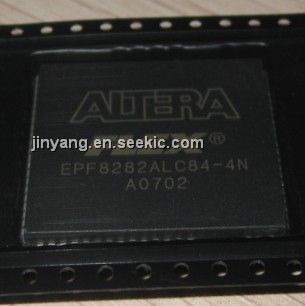

Product Summary
The EPF8282ALC84-4N is an programmable logic device. The EPF8282ALC84-4N combines the benefits of both erasable programmable logic devices (EPLDs) and fieldprogrammable gate arrays (FPGAs). The EPF8282ALC84-4N is ideal for a variety of applications because it combines the fine-grained architecture and high register count characteristics of FPGAs with the high speed and predictable interconnect delays of EPLDs. Logic is implemented in LEs that include compact 4-input look-up tables (LUTs) and programmable registers. High performance is provided by a fast, continuous network of routing resources.
Parametrics
EPF8282ALC84-4N absolute maximum ratings: (1)VCC Supply voltage With respect to ground: –2.0 to 7.0 V; (2)VI DC input voltage: –2.0 to 7.0 V; (3)IOUT DC output current, per pin: –25 to 25 mA; (4)TSTG Storage temperature No bias: –65 to 150 ℃; (5)TAMB Ambient temperature Under bias: –65 to 135 ℃; (6)TJ Junction temperature Ceramic packages, under bias: 150 ℃, PQFP and RQFP, under bias: 135 ℃.
Features
EPF8282ALC84-4N features: (1)Low-cost, high-density, register-rich CMOS programmable logic device (PLD)family; (2)In-circuit reconfigurability (ICR)via external Configuration EPROM or intelligent controller; (3)Fully compliant with the peripheral component interconnect (PCI)standard; (4)Built-in Joint-Test Action Group (JTAG)boundary-scan test (BST)circuitry compliant with IEEE Std. 1149.1-1990 on selected devices; (5)MultiVolt I/O interface enabling device core to run at 5.0 V, while I/O pins are compatible with 5.0-V and 3.3-V logic levels; (6)Low power consumption (typical specification less than 0.5 mA in standby mode).

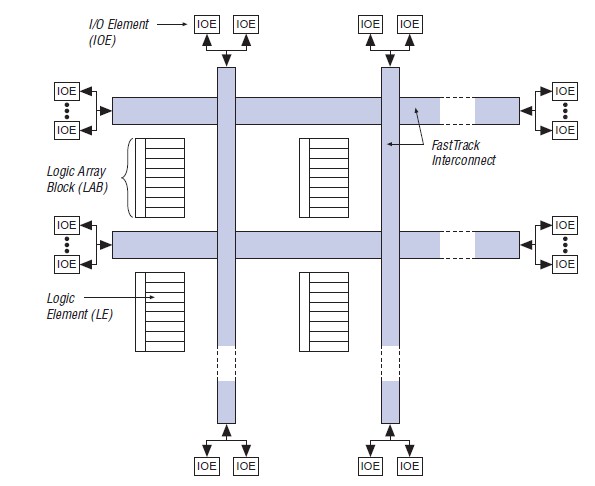

Diagrams
