Product Summary
The GD82551IT is a controller. The GD82551IT provides excellent performance by offloading TCP, UDP and IP checksums and supports TCP segmentation off-load for operations such as Large Send. The GD82551IT provides an extended operating temperature in addition to all of the same capabilities and features as the GD82551IT to address applications requiring a wider operating temperature range. Its optimized 32-bit interface and efficient scatter-gather bus mastering capabilities enable the GD82551IT to perform high speed data transfers over the PCI bus. This capability accelerates the processing of high level commands and operations, which lowers CPU utilization.
Parametrics
GD82551IT absolute maximum ratings: (1)Ambient Temperature: -40° C to 85° C; (2)Storage Temperature: -65° C to 140° C; (3)Outputs and Supply Voltages (except PCI and SMB): -0.5 V to 5.0 V; (4)PCI and SMB Output Voltages: -0.50 V to 5.25 V; (5)Transmit Data Output Voltage: -0.5 V to 8.0 V; (6)Input Voltages (except PCI and SMB): -1.0 V to 5.0 V; (7)PCI and SMB Input Voltages: -0.5 V to 6.0 V.
Features
GD82551IT features: (1)Enhanced IP Protocol Support; (2)TCP, UDP, IPv4 checksum offload; (3)Received checksum verification n Quality of Service (QoS); (4)Multiple priority transmit queues; (5)Optimum Integration for Lowest Cost Solution; (6)Integrated IEEE 802.3 10BASE-T and 100BASE-TX compatible PHY; (7)32-bit PCI master interface; (8)Thin BGA 15mm2 package; (9)Integrated power management functions; (10)ACPI and PCI power management standards compliance; (11)Wake on interesting packets and link status change support; (12)PHY detects polarity, MDI-X, and cable lengths.; (13)Auto MDI, MDI-X crossover at all speeds; (14)XOR tree mode support; (15)High Performance Networking Functions; (16)Low Power Features.

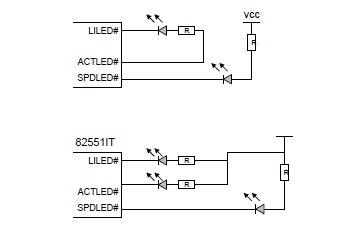

Diagrams
