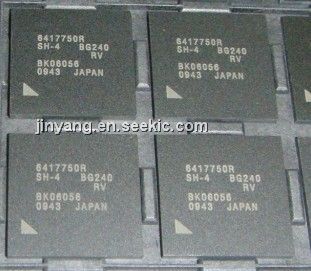

Product Summary
The HD6417750RBG240V is a 32-bit RISC (reduced instruction set computer) microprocessor, featuring object code upward-compatibility with SH-1, SH-2, and SH-3 microcomputers. The HD6417750RBG240V includes an instruction cache, an operand cache with a choice of copy-back or write-through mode, and an MMU (memory management unit) with a 64-entry fully-associative unified TLB (translation lookaside buffer). The HD6417750RBG240V has a 16-kbyte instruction cache and a 32-kbyte data cache.
Parametrics
HD6417750RBG240V absolute maximum ratings: (1)I/O, PLL, RTC, CPG power supply voltage, VDDQ: –0.3 to 4.2, –0.3 to 4.2 V; (2)Internal power supply voltage, VDD: –0.3 to 2.5, –0.3 to 2.1 V; (3)Input voltage, Vin: –0.3 to VDDQ + 0.3 V; (4)Operating temperature, Topr: –20 to 75, –40 to 85 ℃; (5)Storage temperature, Tstg: –55 to 125 ℃.
Features
HD6417750RBG240V features: (1)General register file: Sixteen 32-bit general registers (and eight 32-bit shadow registers); Seven 32-bit control registers; Four 32-bit system registers; (2)RISC-type instruction set (upward-compatible with SH Series): Fixed 16-bit instruction length for improved code efficiency; Load-store architecture; Delayed branch instructions; Conditional execution; C-based instruction set; (3)Superscalar architecture (providing simultaneous execution of two instructions) including FPU; (4)Instruction execution time: Maximum 2 instructions/cycle; (5)Virtual address space: 4 Gbytes (448-Mbyte external memory space); (6)Space identifier ASIDs: 8 bits, 256 virtual address spaces; (7)On-chip multiplier; (8)Five-stage pipeline.

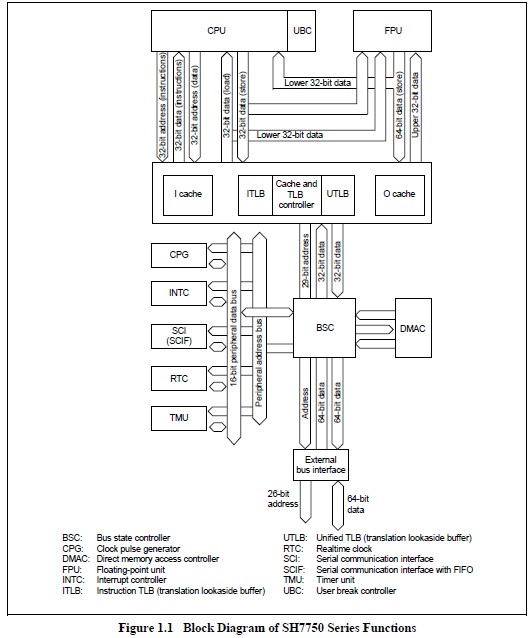

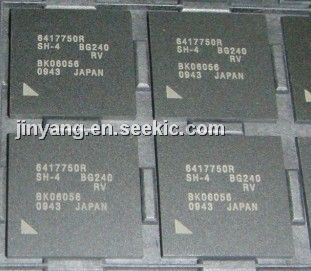

Diagrams
