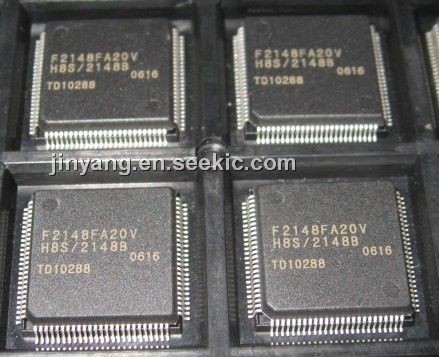

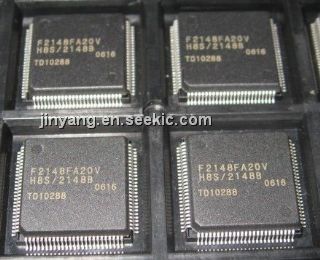

HD64F2148FA20

16-Bit Single-Chip Microcomputer, 4.3V, 33 MHz, 256 KB, TQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $13.50~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	15.00 / Piece
100 ~ 500 :	14.00 / Piece
500 ~ 1000 :	13.50 / Piece

PartNumber:: HD64F2148FA20

Brand:: Renesas Technology Corp - Renesas | Pack: QFP | D/C: 06+

Availability:: Supply Ability: 50/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Wendy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-16

From Other Seller

Part Number:HD64F2148FA20
US $13.50 - 15.00
Quantity:

piece

Product Summary

The HD64F2148FA20 CPU has an internal 32-bit configuration, sixteen 16-bit general registers, and a simple and optimized instruction set for high-speed operation. The HD64F2148FA20 CPU can handle a 16-Mbyte linear address space. The instruction set of the HD64F2148FA20 CPU maintains upward compatibility at the object level with the H8/300 and H8/300H CPUs.

Parametrics

HD64F2148FA20 absolute maximum ratings: (1)Power supply voltage, VCC: –0.3 to +4.3V; (2) Input voltage, Vin: –0.3 to VCC+0.3V; (3)Input voltage (port 7), Vin: –0.3 to AVCC+0.3V; (4)Input voltage, Vin: –0.3 to +7.0V; (5)Reference power supply voltage, AVref: –0.3 to AVCC +0.3V; (6) Analog power supply voltage, AVCC: –0.3 to +4.3V; (7)Analog input voltage, VAN: –0.3 to AVCC+0.3V; (8)Operating temperature Topr Regular specifications: –20 to +75℃; (9)Wide-range specifications: –40 to +85℃; (10)Operating temperature, Topr: 0 to +75℃; (11)Storage temperature, Tstg: –55 to +125℃.

Features

HD64F2148FA20 features: (1)Package: 144TQFP; (2)Family Name: H8S; (3)Maximum Speed: 33 MHz; (4)RAM Size 40 KB; (5)Program Memory Size 256 KB; (6)Operating Supply Voltage 3.3V; (7)Data Bus Width: 16/32 Bit; (8)Program Memory Type: Flash; (9)Number of Programmable I/Os: 106; (10)Interface Type: I2C/IrDA/SCI; (11)On-Chip ADC: 8-chx10-bit; (12)On-Chip DAC: 2-chx8- bit; (13)Operating Temperature: -20 to 75℃; (14)Number of Timers: 5.
