Product Summary

The MAX197ACAI is a multi-range, 12-bit data-acquisition system (DAS). The MAX197ACAI requires only a single +5V supply for operation, yet accepts signals at its analog inputs that may span both above the power-supply rail and below ground. The MAX197ACAI provides 8 analog input channels that are independently software programmable for a variety of ranges: ±10V, ±5V, 0V to +10V, or 0V to +5V. The applications of the MAX197ACAI include Industrial-Control Systems Robotics, Data-Acquisition Systems, Automatic Testing Systems, Medical Instruments and Telecommunications.

Parametrics

MAX197ACAI absolute maximum ratings: (1)VDD to AGND: -0.3V to +7V; (2)AGND to DGND: -0.3V to +0.3V; (3)REF to AGND: -0.3V to (VDD + 0.3V); (4)REFADJ to AGND: -0.3V to (VDD + 0.3V); (5)Digital Inputs to DGND: -0.3V to (VDD + 0.3V); (6)Digital Outputs to DGND: -0.3V to (VDD + 0.3V); (7)CH0–CH7 to AGND: ±16.5V; (8)Continuous Power Dissipation (TA = +70℃): 762mW; (9)Operating Temperature Ranges: 0 to +70℃; (10)Storage Temperature Range: -65 to +150℃; (11)Lead Temperature (soldering, 10s): +300℃.

Features

MAX197ACAI features: (1)12-Bit Resolution, 1/2LSB Linearity; (2)Single +5V Operation; (3)Software-Selectable Input Ranges: ±10V, ±5V, 0V to 10V, 0V to 5V; (4)Fault-Protected Input Multiplexer (±16.5V); (5)8 Analog Input Channels; (6)6μs Conversion Time, 100ksps Sampling Rate; (7)Internal or External Acquisition Control; (8)Internal 4.096V or External Reference; (9)Two Power-Down Modes; (10)Internal or External Clock.

Diagrams

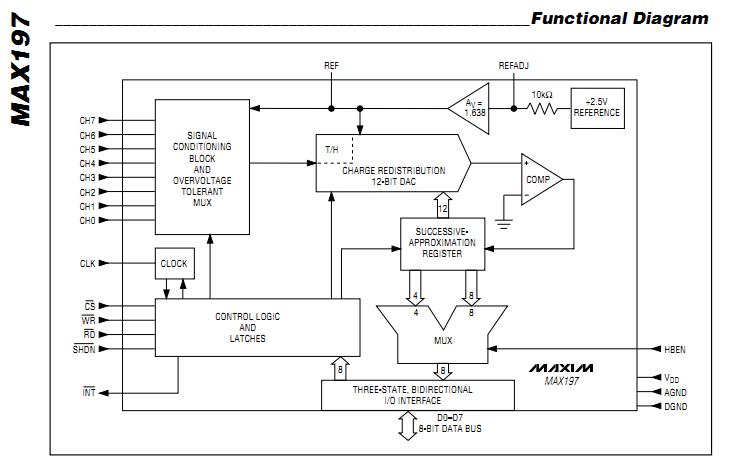

MAX197ACAI functional diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX197ACAI
MAX197ACAI

Maxim Integrated Products

ADC (A/D Converters) Integrated Circuits (ICs)

Data Sheet

Negotiable
MAX197ACAI-T
MAX197ACAI-T

Maxim Integrated Products

ADC (A/D Converters)

Data Sheet

Negotiable
MAX197ACAI+T
MAX197ACAI+T

Maxim Integrated Products

ADC (A/D Converters) 12-Bit 8Ch 100ksps 4.18V Precision ADC

Data Sheet

0-1667: $11.58
1667-2000: $11.58
MAX197ACAI+
MAX197ACAI+

Maxim Integrated Products

ADC (A/D Converters) 12-Bit 8Ch 100ksps 4.18V Precision ADC

Data Sheet

0-1: $28.62
1-25: $19.22
25-50: $13.92
50-100: $13.76
