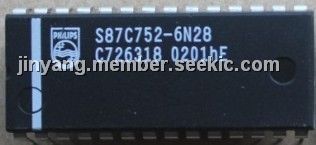

S87C752-6N28

S87C752-6N28, 80C51 8-bit microcontroller, 13.0 V, 1W, DIP28

Rated 5 Rating 5 | reviews | Write a review

Price:: US $15.00~16.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $15.00~16.00

PartNumber:: S87C752-6N28

Brand:: Philips Electronics India Limited - PHILIPS | Pack: DIP | D/C: 02+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Wendy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-18

From Other Seller

Part Number:S87C752-6N28
US $15.00 - 16.00
2DI240A-055

US $70.00 - 100.00 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

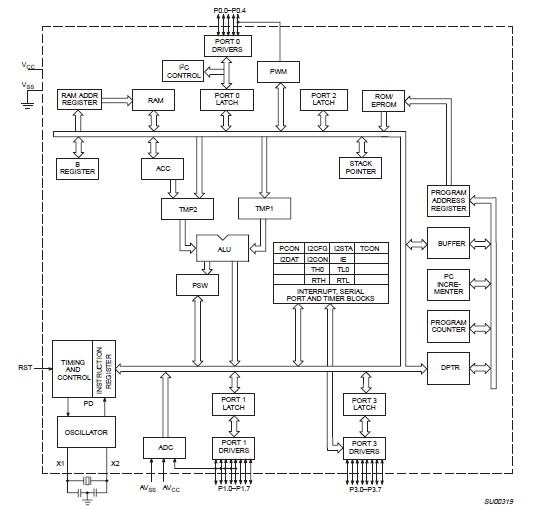

The S87C752-6N28 is an 8-bit microcontroller. The S87C752-6N28 offers many of the advantages of the 80C51 architecture in a small package and at low cost. The S87C752-6N28 is fabricated with Philips high-density CMOS technology. Philips epitaxial substrate minimizes CMOS latch-up sensitivity. The S87C752-6N28 contains a 2k × 8 EPROM, a 64 × 8 RAM, 21 I/O lines, a 16-bit auto-reload counter/timer, a fixed-priority level interrupt structure, a bidirectional inter-integrated circuit (I2C) serial bus interface, an on-chip oscillator, a five channel multiplexed 8-bit A/D converter, and an 8-bit PWM output.

Parametrics

S87C752-6N28 absolute maximum ratings: (1)Storage temperature range: –65 to +150 ℃; (2)Voltage from VCC to VSS: –0.5 to +6.5 V; (3)Voltage from any pin to VSS (except VPP): –0.5 to VCC + 0.5 V; (4)Power dissipation: 1.0 W; (5)Voltage from VPP pin to VSS: –0.5 to + 13.0 V.

Features

S87C752-6N28 features: (1)Available in erasable quartz lid or One-Time Programmable plastic packages; (2)80C51 based architecture; (3)Inter-integrated Circuit (I2C)serial bus interface; (4)2k × 8 ROM (83C752)EPROM (87C752); (5)64 × 8 RAM; (6)16-bit auto reloadable counter/timer; (7)5-channel 8-bit A/D converter; (8)8-bit PWM output/timer; (9)Fixed-rate timer; (10)Boolean processor; (11)CMOS and TTL compatible; (12)Well suited for logic replacement, consumer and industrial applications.
