Product Summary

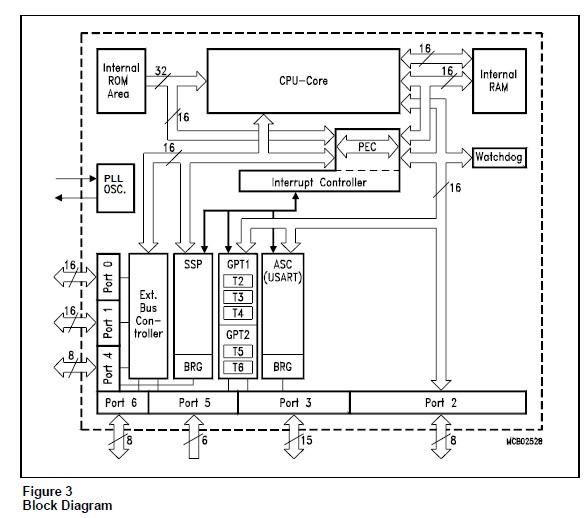

The SAF-C163-LF is a derivative of the Siemens C166 family of 16-bit single-chip CMOS microcontrollers. It combines high CPU performance (up to 12.5 million instructions per second) with high peripheral functionality and enhanced IO-capabilities.

Parametrics

SAF-C163-LF absolute maximum ratings: (1)Storage temperature, TST: -65 to 150℃; (2)Voltage on VDD pins with respect to ground (VSS), VDD: -0.5 to 6.5 V; (3)Voltage on any pin with respect to ground (VSS), VIN: -0.5 to VDD+0.5 V; (4)Input current on any pin during overload condition: -10 to 10 mA; (5)Absolute sum of all input currents during overload condition: - |100| mA; (6)Power dissipation, PDISS: - 1.5 W.

Features

SAF-C163-LF features: (1)High Performance 16-bit CPU with 4-Stage Pipeline; (2)16-Priority-LeveInterrupt System with 20 Sources, Sample-Rate down to 40 ns; (3)8-ChanneInterrupt-Driven Single-Cycle Data Transfer Facilities via PeripheraEvent Controller (PEC); (4)Clock Generation via on-chip PLL (1:1.5/2/2.5/3/4/5), via prescaler or via direct clock input; (5)On-Chip Memory Modules: 1 KBytes On-Chip InternaRAM (IRAM); (6)On-Chip PeripheraModules; (7)Up to 16 MBytes ExternaAddress Space for Code and Data; (8)Idle and Power Down Modes; (9)Programmable Watchdog Timer and Oscillator Watchdog; (10)Up to 77 GeneraPurpose I/O Lines; (11)High Speed Operation with 5 V Supply up to 25 MHz; (12)Low Power Operation with 3 V Supply up to 12 MHz; (13)Supported by a Large Range of Development Tools like Compilers, Macro-Assembler Packages, Emulators, Evaluation Boards, HLL-Debuggers, Simulators, Logic Analyzer Disassemblers, Programming Boards; (14)100-Pin TQFP Package (Thin QFP).
