Product Summary

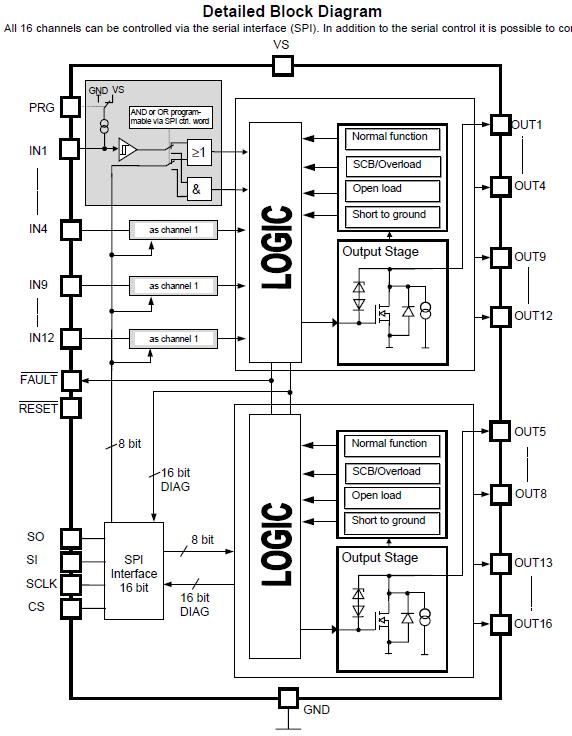

The TLE6240GP is a 16-fold Low-Side Switch (8 x 1.3 Ω, 4 x 0.4 Ω, 4 x 0.35 Ω) in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and 16 open drain DMOS output stages. The TLE6240GP is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via SPI Interface. Additionally 8 channels can be controlled direct in parallel for PWM applications. Therefore the TLE6240GP is particularly suitable for engine management and powertrain systems, safety and body applications. The applications of the TLE6240GP include μC Compatible Power Switch for 12 V and 24 V Applications, Switch for Automotive and Industrial System, Solenoids, Relays and Resistive Loads, Robotic Controls.

Parametrics

TLE6240GP absolute maximum ratings: (1)Supply Voltage: -0.3 to +7 V; (2)Continuous Drain Source Voltage: 45 V; (3)Input Voltage, All Inputs and Data Lines: - 0.3 to + 7 V; (4)Load Dump Protection VLoad Dump = UP+US; UP=13.5 V: 90 V; (5)Output Current per Channel @ TA = 25℃: 0.3 A; (6)Output Current: 14 A.

Features

TLE6240GP features: (1)Short Circuit Protection; (2)Overtemperature Protection; (3)Overvoltage Protection; (4)16 bit Serial Data Input and Diagnostic Output (2 bit/chan. acc. SPI Protocol); (5)Direct Parallel Control of Eight channels for PWM Applications; (6)Parallel Inputs High or Low Active Programmable; (7)General Fault Flag; (8)Low Quiescent Current; (9)Compatible with 3V Microcontrollers.
