Product Summary

The AD5551BRZ is a single, 14-bit, serial-input, voltage-output DAC that operates from a single 2.7 V to 5.5 V supply. The DAC output range extends from 0 V to VREF. The AD5551BRZ provides 14-bit performance without any adjust-ments. The DAC output is unbuffered, which reduces power consumption and offset errors contributed by an output buffer. The AD5551BRZ is ideal for: (1)Digital gain and offset adjustment; (2)Automatic test equipment; (3)Data acquisition systems; (4)Industrial process control.

Parametrics

AD5551BRZ absolute maximum ratings: (1)VDD to AGND: –0.3 V to +6 V; (2)Digital Input Voltage to DGND: –0.3 V to VDD + 0.3 V; (3)VOUT to AGND: –0.3 V to VDD + 0.3 V; (4)AGND, AGNDF, AGNDS to DGND: –0.3 V to +0.3 V; (5)Input Current to Any Pin Except Supplies: ±10 mA; (6)Operating Temperature Range Industrial (B Version): -40℃ to +85℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Maximum Junction Temperature, (TJ max): 150℃; (9)Package Power Dissipation: (TJ max – TA)/θJA; (10)Lead Temperature, Soldering Peak Temperature: 260℃; (11)ESD: 5 kV.

Features

AD5551BRZ features: (1)Full 14-bit performance; (2)3 V and 5 V single supply operation; (3)Low 0.625 mW power dissipation; (4)1 μs settling time; (5)Unbuffered voltage output capable of driving 60 kΩ loads directly; (6)SPI/QSPI/MICROWIRE-compatible interface standards; (7)Power-on reset clears DAC output to 0 V (unipolar mode); (8)5 kV HBM ESD classification.

Diagrams

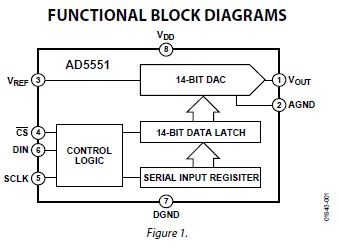

AD5551BRZ circuit diagram
