Product Summary

The CXA1439M is an IC for CDS (Correlated Double Sampling) to be used in a CCD camera.

Parametrics

CXA1439M absolute maximum ratings: (1)Supply voltage, Vcc: 10V; (2)Operating temperature, Topr: -20 to +75℃; (3)Storage temperature, Tstg: -60 to +150℃; (4)Allowable power dissipation, PD: 300 mW.

Features

CXA1439M features: (1)Single power supply (4.8V); (2)Low power consumption (57mW); (3)Requires less external parts; (4)High S/N ratio; (5)A smaller-size package requiring less mounting space; (6)Built-in two amplifiers.

Diagrams

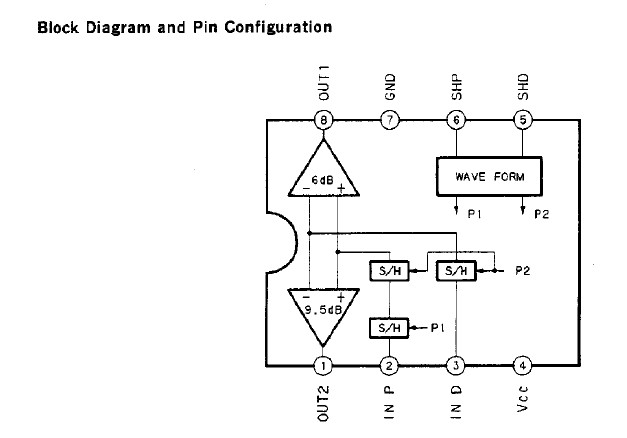

CXA1439M circuit diagram
