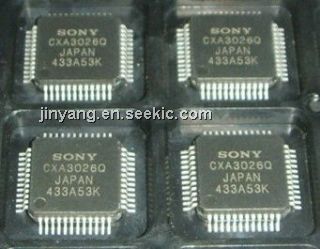

Product Summary
The CXA3026Q is an 8-bit high-speed flash A/D converter capable of digitizing analog signals at the maximum rate of 120MSPS. ECL, PECL or TTL can be selected as the digital input level in accordance with the application. The TTL digital output level allows 1: 2 demultiplexed output. Applications of the CXA3026Q are (1)magnetic recording (PRML); (2)communications (QPSK, QAM); (3)LCDs; (4)digital oscilloscopes.
Parametrics
CXA3026Q absolute maximum ratings: (1)Supply voltage AVCC, DVCC1, DVCC2: -0.5 to +7.0 V, DGND3: –0.5 to +7.0 V, DVEE3: –7.0 to +0.5 V, DGND3 – DVEE3: –0.5 to +7.0 V; (2)Analog input voltage VIN VRT: – 2.7 to AVCC V; (3)Reference input voltage VRT: 2.7 to AVCC V, VRB VIN: – 2.7 to AVCC V, |VRT – VRB|: 2.5 V; (4)Digital input voltage ECL DVEE: 3 to +0.5 V, PECL (***/E)–0.5 to DGND: 3 V, TTL (***/T, INV)–0.5 to DVCC: 1 V, other (SELECT)–0.5 to DVCC: 1 V, VID*2 (|***/E – ***N/E|): 2.7 V; (5)Storage temperature Tstg: –65 to +150 °C; (6)Allowable power dissipation PD: 2 W.
Features
CXA3026Q features: (1)Differential linearity error: ±0.5LSB or less; (2)Integral linearity error: ±0.5LSB or less; (3)High-speed operation with a maximum conversion rate of 120MSPS; (4)Low input capacitance: 21pF; (5)Wide analog input bandwidth: 150MHz; (6)Low power consumption: 760mW; (7)Low error rate; (8)Excellent temperature characteristics; (9)1: 2 demultiplexed output; (10)1/2 frequency divided clock output (with reset function); (11)Compatible with ECL, PECL and TTL digital input levels; (12)Single +5V power supply operation available; (13)Surface mounting package.

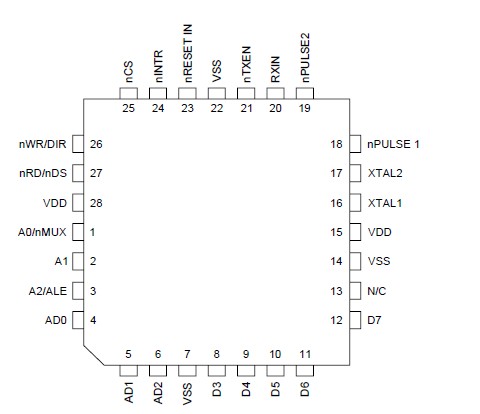

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
CXA3026Q |
Other |
Data Sheet |
Negotiable |
|
||||||
