DG509AAK

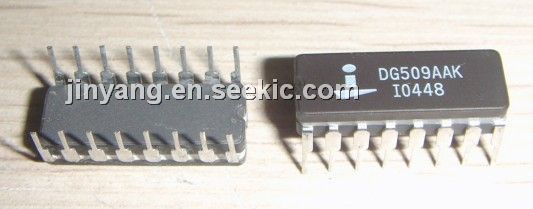

DG509AAK, monolithic CMOS analog multiplexer, 842mW, 30mA, CDIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $27.00~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	30.00 / Piece
50 ~ 100 :	28.00 / Piece
100 ~ 500 :	27.00 / Piece

PartNumber:: DG509AAK

Brand:: Intersil Corporation - Intersil | Pack: CDIP | D/C: 04+

Availability:: Supply Ability: 50/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Wendy's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-21

From Other Seller

Part Number:DG509AAK
US $27.00 - 30.00
Quantity:

piece

Product Summary

The DG509AAK is a monolithic CMOS analog multiplexer (mux): the DG508A is a single 8-channel (1-of-8) mux, and the DG509A is a differential 4-channel (2-of-8) mux. Both devices guarantee break-before-make switching. Maxim guarantees these muxes will not latch up if the power supplies are turned off with the input signals still present. Applocations are (1)control systems; (2)data logging systems; (3)aircraft heads-up displays; (4)data-acquisition systems; (5)signal routing.

Parametrics

DG509AAK absolute maximum ratings: (1)Voltage Referenced to VV+ : +44V GND: +25V, Digital Inputs, VS and VD: -2V to (V+ + 2V)or 20mA, whichever occurs first; (2)Current (any terminal, except S or D): 30mA; (3)Continuous Current, S or D : 20mA; (4)Peak Current, S or D (pulsed at 1ms, 10% duty cycle max): 40mA; (5)Continuous Power Dissipation (TA = +70°C); (6)Plastic DIP (derate 10.53mW/°C above +70°C): 842mW; (7)QFN (derate 19.2mW/°C above +70°C): 1538mW; (8)Narrow SO (derate 8.70mWI°C above +70°C): 696mW; (9)Wide SO (derate 9.52mW/°C above +70°C): 762mW; (10)CERDIP (derate 10.00mW/°C above +70°C): 800mW; (11)Operating Temperature Ranges: -55°C to +125°C; (12)Storage Temperature Range : -65°C to +150°C; (13)Lead Temperature (soldering, 10s): +300°C.

Features

DG509AAK features: (1)Improved Second Source; (2)Operate from ±4.5V to ±18V Supplies; (3)Symmetrical, Bidirectional Operation; (4)Logic and Enable Inputs, TTL and CMOS Compatible; (5)Latchup-Proof Construction; (6)Monolithic, Low-Power CMOS Design.
