Product Summary

The DK2A-5V is a miniature power relay.


Parametrics

DK2A-5V absolute maximum ratings: (1)Nominal switching capacity: 10 A 250 V AC; (2)Max. switching power: 300 W, 2,500 VA 240 W, 2,000 VA; (3)Max. switching voltage: 250 V AC, 30 V DC 250 V AC, 30 V DC; (4)Max. switching current: 10 A 8 A; (5)Ambient temp: –40 °C to +65 °C; (6)Nominal operating power: 200 mW.

Features

DK2A-5V features: (1)Large capacity in small size: 10 A 250 V AC (1a); (2)High sensitivity: 200 mW nominal operating power; (3)High breakdown voltage 4,000 Vrms between contacts and coil 1,000 Vrms between open contacts Meeting FCC Part 68; (4)Sealed construction; (5)Latching types available.

Diagrams

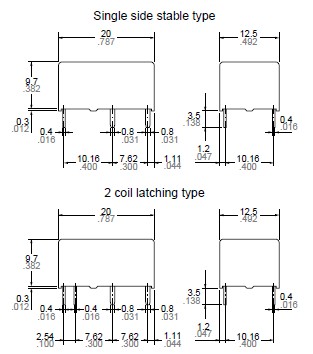

DK2A-5V pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

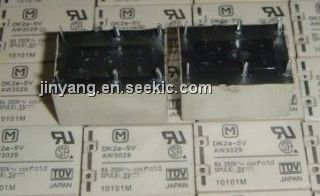

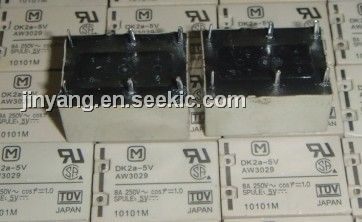

DK2A-5V
DK2A-5V
Panasonic Electric Works
General Purpose / Industrial Relays 8A 5VDC DPST-NO
Data Sheet
0-1: $5.72
1-25: $5.55
25-50: $5.38
50-100: $5.01
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DK2A-12V
DK2A-12V
Panasonic Electric Works
General Purpose / Industrial Relays 8A 12VDC DPST-NO PCB
Data Sheet
0-1: $7.65
1-25: $7.03
25-50: $6.25
50-100: $5.30
DK2A-24V
DK2A-24V
Panasonic Electric Works
General Purpose / Industrial Relays 8A 24VDC DPST-NO
Data Sheet
0-1: $7.65
1-25: $6.92
25-50: $6.25
50-100: $5.30
DK2A-L2-12V
DK2A-L2-12V
Panasonic Electric Works
General Purpose / Industrial Relays 8A 12VDC DPST-NO 2 COIL LATCHING PCB
Data Sheet
0-1: $8.07
1-25: $7.41
25-50: $6.59
50-100: $5.60
DK2A-5V
DK2A-5V
Panasonic Electric Works
General Purpose / Industrial Relays 8A 5VDC DPST-NO
Data Sheet
0-1: $5.72
1-25: $5.55
25-50: $5.38
50-100: $5.01
