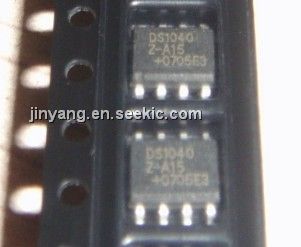

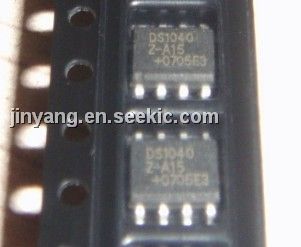

The DS1040Z-A15+ Pulse Generator is a user-programmable one-shot with a choice of five precise pulse widths. Maximum widths range from 50 ns to 500 ns; increments range from 2.5 ns to 100 ns. For maximum flexibility in applications such as magneto-optical read/write disk laser power control, varieties are offered with equal and unequal increments. The DS1040Z-A15+ is offered in standard 8-pin DIPs and 8-pin mini-SOICs.
Parametrics
DS1040Z-A15+ absolute maximum ratings: (1)Supply Voltage (VCC): -0.5V to 7.0V; (2)Storage Temperature (TSTG): -65°C to 150°C; (3)Package Power Dissipation (PD): 900 mW; (4)Lead Temperature (TL): 260°C; (5)ICC Average Active (Transmitting and Receiving)X1 e 20 MHz Clock: 150 mA.
Features
DS1040Z-A15+ features: (1)All-silicon pulse width generator; (2)Five programmable widths; (3)Equal and unequal increments available; (4)Pulse widths from 5 ns to 500 ns; (5)Widths are stable and precise; (6)Rising edge-triggered; (7)Inverted and non-inverted outputs; (8)Width tolerance ±5% or ±2 ns, whichever is greater; (9)Economical; (10)Auto-insertable, low profile; (11)Low-power CMOS; (12)TTL/CMOS-compatible; (13)Vapor phase, IR and wave solderable; (14)Custom widths available; (15)Fast turn prototypes; (16)Extended temperature range available.

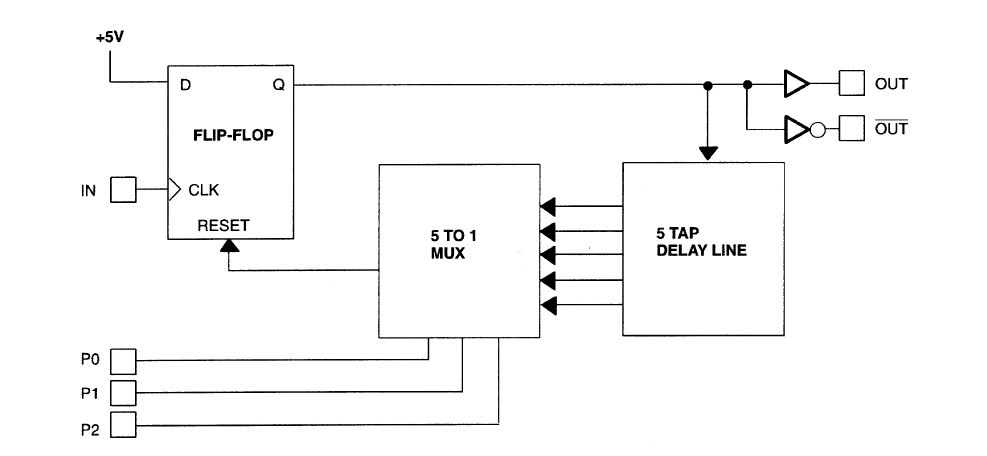

Diagrams
